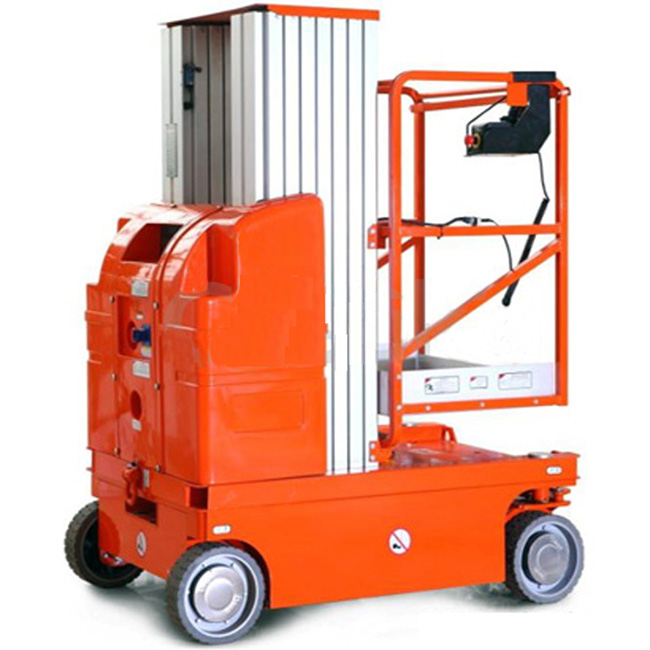

| Self-Propelled Vertical Lifts |
|
|
|
|
Product Description
¡ñ Single extension platform provide more workspace
¡ñ 25% gradeability when driving on slopes
¡ñ Zero-turn radius provide access in and around confined work areas
¡ñ On-board diagnostics help operators troubleshoot on the fly and make
adjustments in the field to maximize
| Model |
AMWP9.5-2100 |
AMWP11-2100 |
 |
| S.W.L |
200kg |
150kg |
| Max. Occupants |
1 |

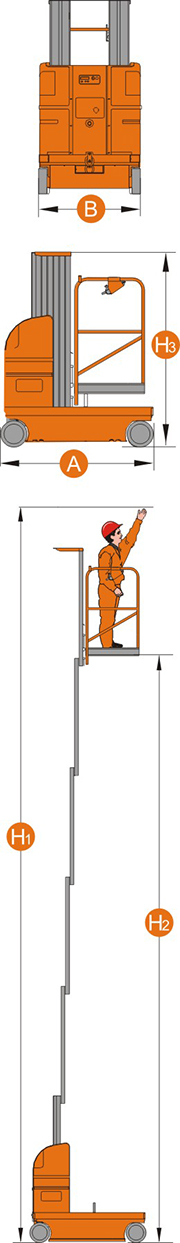

| Working Height(H1) |
9.50m |
11.00m |
| Platform Floor Height(H2) |
7.50m |
9.00m |
| Overall Length(A) |
1.55m |
| Overall Width(B) |
1.01m |
| Overall Height(H3) |
2.00m |
| Platform Size |
1.00m¡Á0.70m |
| Ground Clearance(Stowed) |
0.08m |
| Ground Clearance(Raised) |
0.019m |
| Wheel Base |
1.23m |
| Turning Radius(Inside/Outside) |
0/1.9m |
| Drive Motors |
2¡Á24VDC/0.5kw |
| Lifting Motor |
24VDC/2kw |
| Travel Speed(Stowed) |
4.0km/h |
| Travel Speed(Raised) |
1.1km/h |
| Up/Down Speed |
42/31 sec |
45/34 sec |
| Betteries |
2¡Á12V/85Ah |
| Integrated Charger |
24V/11A |
| Gradeability |
25% |
| Maximum Slope |
2¡ã/3¡ã |
| Tyre |
¡é305¡Á100mm |
| Gross Weight |
1270kg |
1345kg | |
|
|
|
|
|
|
