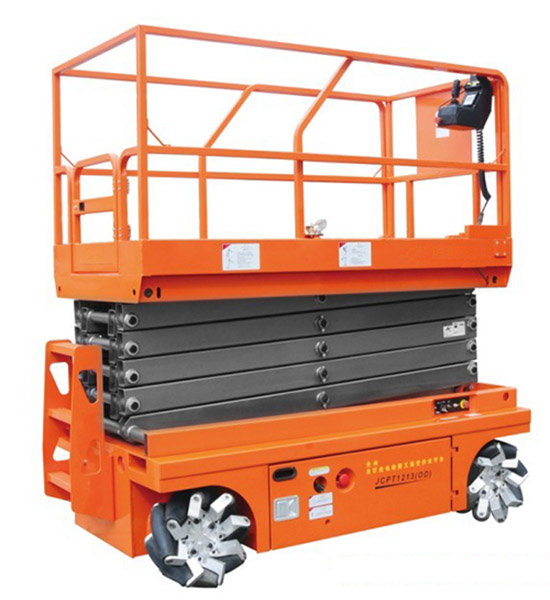

Product Description
¡ñ Single extension platform provide more workspace
¡ñ 360-degree rotating provide access in and around confined work areas
¡ñ Swing-out tray for easy maintenance access
¡ñ On-board diagnostics help operators troubleshoot on the fly and make
adjustments in the field to maximize uptime
| Model |
GTPT1013(OD) |
GTPT1213(OD) |
 |
| S.W.L |
450kg |
400kg |
| S.W.L On Extension |
112kg |
| Max. Occupants |
2 |
| Working Height(A) |
10.00m |
12.00m |
| Platform Floor Height(B) |
8.00m |
10.00m |
| Overall Length(C) |
2.48m |
| Overall Width(D) |
1.39m |
| Overall Height(E) |
2.51m |
| Platform Size(Length/Width(F)) |
2.27m¡Á1.12m |
| Platform Extension Size(G) |
0.90¡Á1.12m |
| Ground Clearance |
0.08m |
| Wheel Base |
1.80m |
| Turning Radius |
0 |
| Drive Motors |
4¡Á48VAC/1.5kw |
| Lifting Motor |
48VDC/2kw |
| Travel Speed(Stowed) |
3.5km/h |
| Travel Speed(Raised) |
0.8km/h |
| Up/Down Speed |
62/65 sec |
79/72 sec |
| Betteries |
8¡Á6V/225Ah |
| Integrated Charger |
48V/25A |
| Maximum Working Slope |
2¡ã |
| Tyre |
¡é460¡Á240mm |
| Gross Weight |
3120kg |
3280kg | |
