Product Description

• 1. Wide operating range: 360° full direction operation at the height from 0~143 ft (43.6 m), with a horizontal reach max. by 80 ft (24.38 m).
  2. Large load capacity: The lift capacity is 1058 lbs (480 kg); the platform can hold 3 operators.
  3. Powerful driving force: The engine is of famous international brand, large in power, strong gradeability.
  4. Advanced technology: Self-adaption floating device, fault self-diagnosis technology, self-levelling system, and anti-collision transducer device.
  5. High reliability: The engine, key hydraulic components and electric components are all of international brand, designed in conformity with EN280, AS1418.10 and GB25849.
  6. Good safety: Overload limit and rollover protection system.
  7. Easy maintenance: Swing-out engine, easy to maintain.

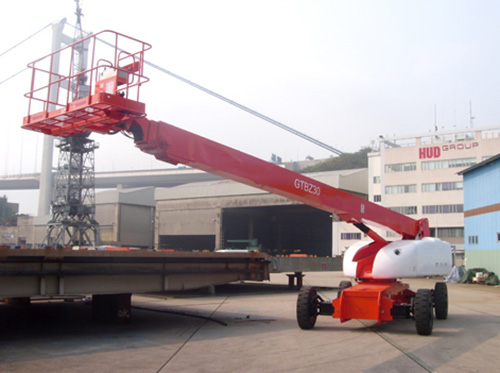

Models	GTBZ20	GTBZ22J	GTBZ26	GTBZ28J	GTBZ30	GTBZ32J	GTBZ36	GTBZ38J	GTBZ42J
Platform height max.	20.6m	22.2m	25.8m	27.7m	30.4m	32m	36.5m	38.1m	41.6m
Working height max.	22.6m	24.2m	27.8m	29.7m	32.4m	34m	38.5m	40.1m	43.6m
Horizontal extended	17.5m	18m	22m	21m	22.3m	24.4m	21m	22.5m	24.38m
Lift Capacity	480kg	250kg	480kg	250kg	480kg	250kg	480kg	250kg	480kg
Gradeability	30%(2WD) 45%(4WD)	30%(2WD) 45%(4WD)	30%(2WD) 45%(4WD)	30%(2WD) 45%(4WD)	42%	42%	40%	40%	40%
Length-stowed	9.57m	11.2m	11.54m	13.22m	13m	14.02m	12.5m	14.02m	13.1m
Width-stowed	2.49m	2.49m	2.49m	2.49m	2.49m	2.49m	2.49m	2.49m	2.49m
Height-stowed	2.84m	2.84m	2.88m	2.88m	3.08m	3.08m	3.08m	3.08m	3.05m
Ground clearance	0.45m	0.45m	0.41m	0.41m	0.43m	0.43m	0.43m	0.43m	0.65m
Wheelbase	2.49m	2.49m	3m	3m	3.66m	3.66m	3.66m	3.66m	3.81m
Platform size (L*W*H)	1.45*0.85* 1.24m	1.45*0.85* 1.24m	1.45*0.85* 1.24m	1.45*0.85* 1.24m	1.45*0.85* 1.24m	1.45*0.85* 1.24m	1.45*0.85* 1.24m	1.45*0.85* 1.24m	2.44*0.91* 1.14m
