Product Description
1. Wide operating range: 360° full direction operation at a height from 0~73 ft (22.2m), with a horizontal reach max. by 38ft 5 in (11.74m) and a crossing height of 30 ft 5 in (9.3 m).
2. Large load capacity: The platform capacity is 551 lbs (250kg)，two operators and some auxiliary tools are allowed for the platform, three people are allowed for the truck cab.
3. Strong Power: Used the well-known brand car chassis, the entire platform relies on a high-speed truck driving, power up to 139KW.
4. High work efficiency: the A-leg design, four outriggers synchronous vertical telescopic, shorter time search for retractable and balance need.
5. Cost savings: Fuel consumption 21.4% lower than similar domestic truck, failure rates or repair rates 20% lower than the similar vehicles, can greatly save the operation and maintenance cost.
6. Good safety: Double backup the operating system, overweight alarm, full-scale gradient control, the relevant action controlle, precise control, and fully guarantees the safety for workers.
7. Environmental: Euro Ⅲ(Euro IV optional) standard, Conforms to national emission standards for stage IV motor vehicles
|
Models |

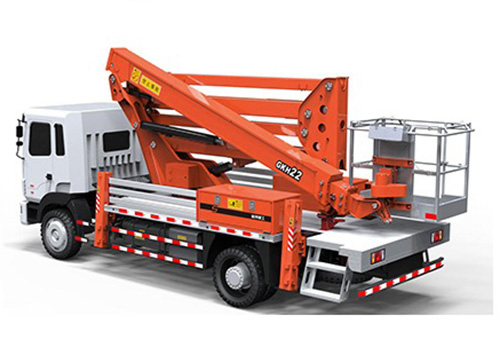

GKH22 |
|
|
Dimensions |
|
Platform height max. |
67 ft 3 in (20.5 m) |
|
Working height max. |
72 ft 8 in (22.2 m) |
|
Horizontal reach max. |
38 ft 5 in (11.74 m) |
|
Up and over clearance max. |
30 ft 5 in (9.3 m) |
 Length - stowed |
23 ft 6 in (7.2 m) |
 Width - stowed |
7 ft 4 in (2.25 m) |
 Height - stowed |
10 ft 8 in (3.3 m) |
 Wheelbase |
12 ft 5 in (3.815 m) |
|
Ground clearance |
7 in (0.2 m) |
|
Platform size (L*W*H) |
3 ft 9 in*2 ft 5 in*3 ft 6 in (1.2 m*0.75 m*1.1 m) |
|
Productivity |
|
Max. platform occupancy |
2 |
|
Standard cab ride |
3 |
|
Lift capacity |
265 lbs (120 kg) - unlimited
551 lbs (250 kg) - Limited |
|
Turntable rotation |
360° continuous |
|
Platform rotation |
185° |
|
Departure angle |
14° |
|
Approach angle |
21° |
|
Max. drive speed |
52.8 mph (85 km/h) |
|
Max. allowabe wind speed |
28 mph (12.5 m/s) |
|
Max. allowable lateral force |
400 N |
|
Power |
|
Engine model |
4HK1-TCG40 |
|
Chassis model |
QL11009LARY |
|
Control voltage |
12 VDC |
|
Power |
139 KW |
|
Weight |
|
Overall weight |
19180 lbs (8700 kg) | |
