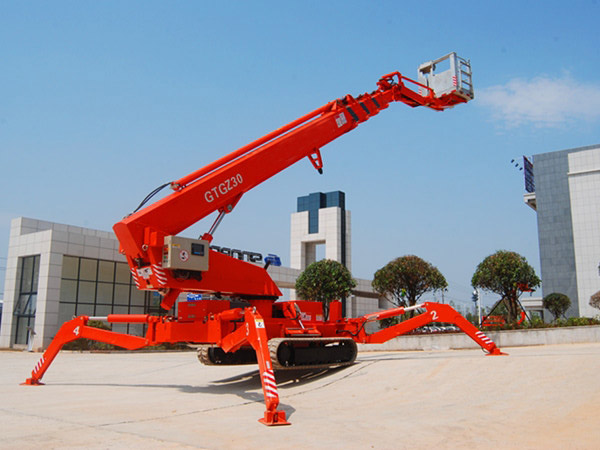

Your location：Home > Product > Spider Lift-GTGZ30J |
|
| |
| |
|
|
Product Description
-
1. Excellent performance: Light weight, small size, excellent adaption to the working site, e.g. field, indoors, outdoors narrow space and special conditions.
2. Easy operation: 328 ft (100 m) wireless remote control, very flexible to operate up and down.
3. High efficiency: When the product is unfolded, the outriggers level out automatically, reducing preparation time.
4. Advanced technology: Hydraulic dual-speed drive mode, imported gradual progress control system with proportional joystick, concentric roller telescoping technology.
5. High reliability: Service life is extended greatly by use of the built-in chain telescoping mechanism and drag chain; the boom is made of high-strength steel and titanium-aluminum alloy; the working funnel is made of aluminum alloy which is light in weight and good in stability.
6. Good safety: Several sets of emergency system and multiple interlocking protection system ensure the safety of operators.
|
Models |
GTGZ30J |
|
|
Dimensions |
|
Platform height max. |
92 ft (28 m) |
|
Working height max. |
98 ft (30 m) |
|
Horizontal reach max. (load 200kg) |
39 ft 4 in (12 m) |
|
Horizontal reach max. (load 80kg) |
45 ft 9 in (14 m) |
 Length - stowed |
23 ft 6 in (7.2 m) |
 Width - stowed |
5 ft 2 in (1.58 m) |
 Height - stowed |
6 ft 5 in (1.98 m) |
 Ground clearance |
1 ft (0.31 m) |
|
Max. ground clearance - outrigger expand |
4 ft 1 in (1.26 m) |
|
Platform size (L*W*H) |
3 ft 9 in*2 ft 6 in*3 ft 6 in (1.2 m*0.8 m*1.1 m) |
|
Size of support pedal |
1 ft*7 in (0.31 m*0.22 m) |
|
Wireless remote control range |
328 ft (100 m) |
|
Productivity |
|
Max. platform occupancy |
2 |
|
Lift capacity |
441 lbs (200 kg) |
|
Drive speed |
0~1.9 mph (0~3 km/h) |
|
Gradeability |
30% |
|
The slope gradient outrigger can support |
30% |
|
Turntable rotation |
440° |
|
Platform rotation |
180° |
|
Flying arm rotation |
180° |
|
Load capacity of each pedal |
32 kn |
|
Grawler walking on the ground pressure |
4 kn/m^2 |
|
Power |
|
Power source |
Perkins engine
+ 220V/400V |
|
Hydraulic system capacity |
19.81 gal (75 L) |
|
Control voltage |
12 VDC |
|
Power |
18.5 KW |
|
Weight |
|
Overall weight |
9921 lbs (4500 kg) |
|
Standards Compliance |
CE/ ISO/ ADR/ ARAMCO | |
|
|
|
|
|
|
