Product Description
¡ñ Valuable material handling equipment for use as a feeling table on assembly line.
¡ñ Structural heavy duty steel construction.
¡ñ Easy action foot operated hydraulic lift for raising table top to desired level.
¡ñ Hand operated table descent control.
¡ñ Over load-pass valve protects operator and pump.
| MODEL |
|

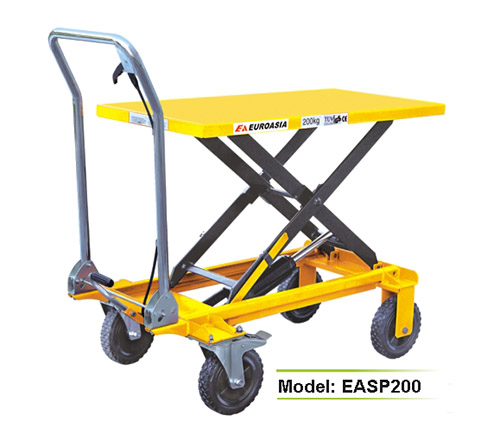

EASP200 |
| Capacity |
kg |
200 |
| Max. lift height |
h12(mm) |
1000 |
| Min. height of table |
h13(mm) |
330 |
| Lifting height |
h3(mm) |
670 |
| Table size |
l¡Áb5¡Ás(mm) |
1000¡Á500¡Á35 |
| Total height |
h14(mm) |
1056 |
| Overall length |
l1(mm) |
1120 |
| Foot pedal cycles to max height |
|
¡Ü25 |
| Wheel diameter |
d(mm) |
200 |
| Qty./20¡¯ Container |
PCS |
72 |
| Service weight |
kg |
71 |
| Carton size |
mm |
1140¡Á620¡Á460 | |
