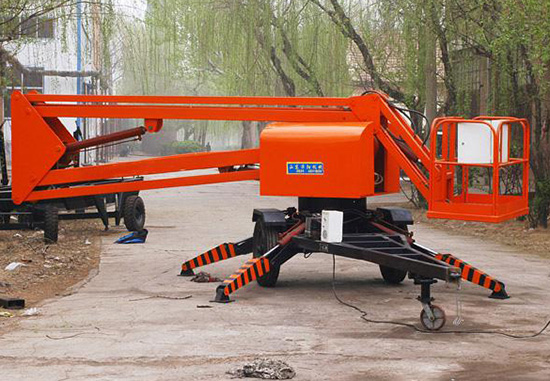

Product Description

Surface materials: insulation board table with non-slip
Main structure: folded steel plate welding

Bearing: SF-1 self-lubricating bearing
Hydro-cylinder: both way high precision wear-resisting hydro-cylinder, 7pcs
Hydraulic pipe: high pressure pipe with double expanded metal protected.

Hydraulic oil: 32# anti-wear hydraulic oil
Obturating ring: Brand Valqua Seal (imported from Japan)
It should be towed by one truck and another person operate on the platform.

Model	ATB 0.2-16
Lifting height	16m
Working height	17.7m
Load capacity	200kg
Horizontal span	7M
Platform size	900*700mm
Color	According to your requirements
Overall dimension	7200×1800×2400mm
Operation	Up & down
Support arm	Rectangular Steel Tube
AC Power	380V, three phase, 50hz (or according to your local voltage)
Lifting speed	4m/min
Rotation	360 degree
Out riggers	4pcs auto shrink hydraulic legs
Rotation angle	360 degree
Self-weight	3000kg
