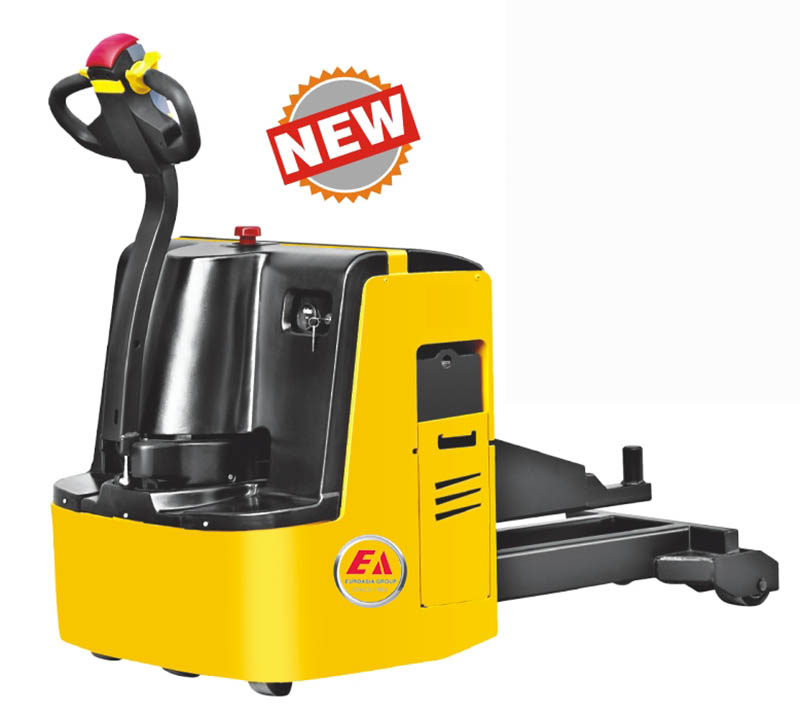

Product Description
• Double balance wheels on the chassis, providing more stable operation.
• AC driving system provides more efficient operating, lower circuit failure rate and stronger motor power.
• Brushless AC motor features better heat dissipation and miantenance free.
• Regenerative braking reuces the attrition.
|
Model |
|
EAQDD25W |
|
Drive type |
|
electric |
|
Operation type |
|
pedestrian |
|
Load capacity |
Kg |
2500 |
|
Rated drawbar pull |
F(N) |
750 |
|
Wheelbase |
Y(mm) |
1303 |
|
Service weight (with battery) |
kg |
580 |
|
Axle loading, laden front/rear |
kg |
445/135 |
|
Tyres |
|
Polyurethane |
|
Tyre size, front |
mm |
250 |
|
Tyre size, rear |
mm |
98 |
|
Tread, rear(balanced wheel) |
b 1 (mm) |
524 |
|
Tread, front |
b 2 (mm) |
400 |
|
Height of tiller in drive position min./max |
h 1(mm) |
495/1185 |
|
Overall length |
l 1 (mm) |
1532 |
|
Overall width |
b 3(mm) |
775 |
|
Overall height |
h 2(mm) |
833 |
|
Ground clearance, centre of wheelbase |
m (mm) |
75 |
|
Drawbar pull min/max height |
h 3(mm) |
217/327 |
|
Turning radius |
Wa (mm) |
1515 |
|
Minimum turning diameter |
d (mm) |
632 |
|
Travel speed, laden/ unladen |
km/h |
4.5/5 |
|
Gradeability, laden/ unladen |
% |
5/12 |
|
Service brake |
|
electromagnetic |
|
Battery voltage/nominal capacity |
V/Ah |
24/165 |
|
Battery weight |
kg |
175 |
|
Battery dimensions l/w/h |
mm |
750X170X465 |
|
Traction connection mode |
|
axis pin | |
