Product Description

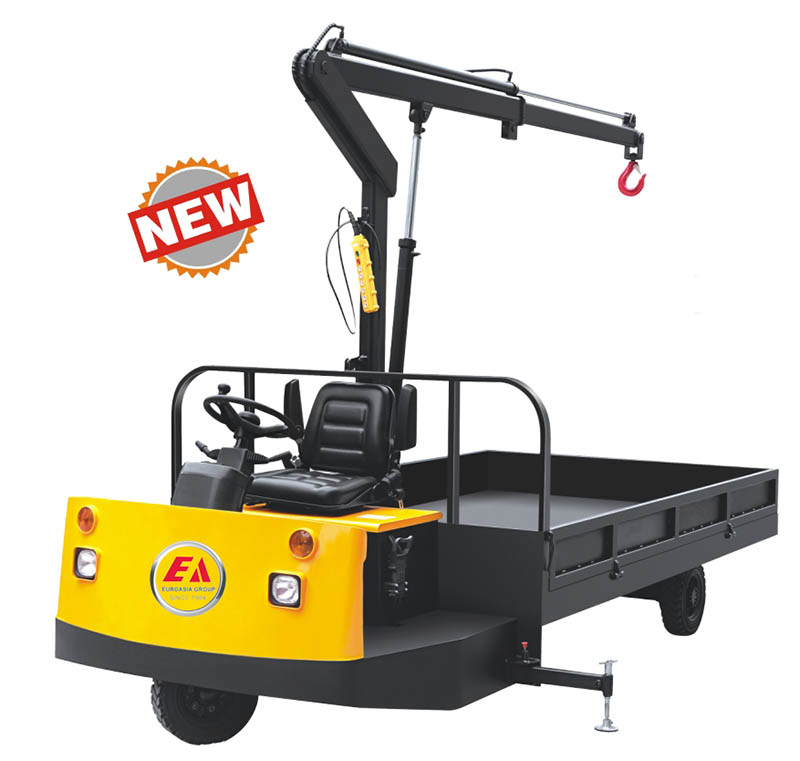

8226; The truck is small and compact design£¬wide view provides safe operation, low noise and no pollution , which especially fit for loading/unloading and carrying goods in places like factories, docks, warehouses and so on.
8226; Auxiliary balance point on both sides of the truck, safety for loading and unloading .
8226; It has wide operation scope and high efficiency.
8226; Small turning radius fit for working on narrow places.
8226; It has buzzing alarm function when back running.
8226; Driving wheel replacement and maintenance is easy and convenient. AC driving motor is maintenance free and has long using time.
8226; High-performance multi-function meter displays: battery power, accumulative working hour, fault code etc, which has high reliability no matter what bad environment it is in.
8226; Hand breaking combining with hydraulic breaking improve the truck¡¯s safety performance.
8226; Adjustable steering wheel satisfies different drivers.
8226; The steering wheel has automatic reset function.
8226; Cover with reasonable design, reliable and easy to dismantle, which makes the maintenance of the electrical parts very easy.
8226; Integrated electric layout reduces wiring complexity, making the line clear, orderly and easy to repair. The electric system is reliable and quakeproof.
|
MODEL |
¡¡ |
EADC500 |
|
Drive type |
|
electric |
|
Operation type |
|
seated |
|
Rated Lifting Capacity |
(kg.m) |
250¡Á2.5 |
|
Rated Load capacity |
kg |
2000 |
|
Wheelbase |
Y(mm) |
2675 |
|
Axle loading, unladen front/rear |
kg |
830/870 |
|
Tyres |
|
rubber |
|
Tyre size, front |
|
¦Õ380¡Á114 |
|
Tyre size, rear |
|
¦Õ380¡Á114 |
|
Wheels, number front rear(x=driven wheels) |
b11(mm) |
1/2X |
|
Tread, rear |
l1(mm) |
1600 |
|
Overall length |
l2(mm) |
4026 |
|
Length of vechil bin |
b1(mm) |
2844 |
|
Overall width |
m2(mm) |
1800 |
|
Ground clearance, centre of wheelbase |
Ast(mm) |
90 |
|
Aisle width |
Wa(mm) |
2000 |
|
Turning radius |
Km/h |
3170 |
|
Travel speed,laden/unladen |
% |
12/13 |
|
Max.gradeability, laden/unladen |
|
10/15 |
|
Service brake |
|
Manual/Hydraulie |
|
Battery voltage, nominal capacity K5 |
V/Ah |
48/270 |
|
Battery weight |
kg |
400 |
|
Battery dimensions l/w/h |
mm |
814x416x578 |
|
Sound level at the driver¡¯s ear acc. to DIN 12053 |
dB(A) |
70 |
|
Service weight (with battery) |
kg |
1700 | |
