Product Description
●Low gravity centre provides good stability.
●Advanced electric steering technology(EPS) is humanized designed, with automatic reset , height display and automatic deceleration at high lifting lever.
●Finger tip control via joystick, Stepless speed control for driving , lifting and lowering speed is adjustable.
●Buffer oil cylinder: the oil cylinder will automatic decelerate when off ground 500mm, to prevent impact and lower noises.
●The mast and the frame are dividable and exchangeable.
●Low battery protection setting prolongs the battery use time.
●AC motor eliminates replacement of the carbon brush, provides good ramp starting performance and regenerative breaking functions.
●Sideway battery is convenient for exchanging and maintaining .
●The mast material is the special type imported from Germany.
●The truck can automatic decelerate when quick turning.
●High performance multi-function instrument has LED light and display function. LED indicators include battery indicator, fault indicator, Electric thermometer indicator, pedal indicator and hand break indictor.
●Multi function display, include battery status, performance, working hour, accelerator, speed, the wheel position and traveling direction.
●Press right and left keys to switch for different grades: high, normal, low, and lowest.
|

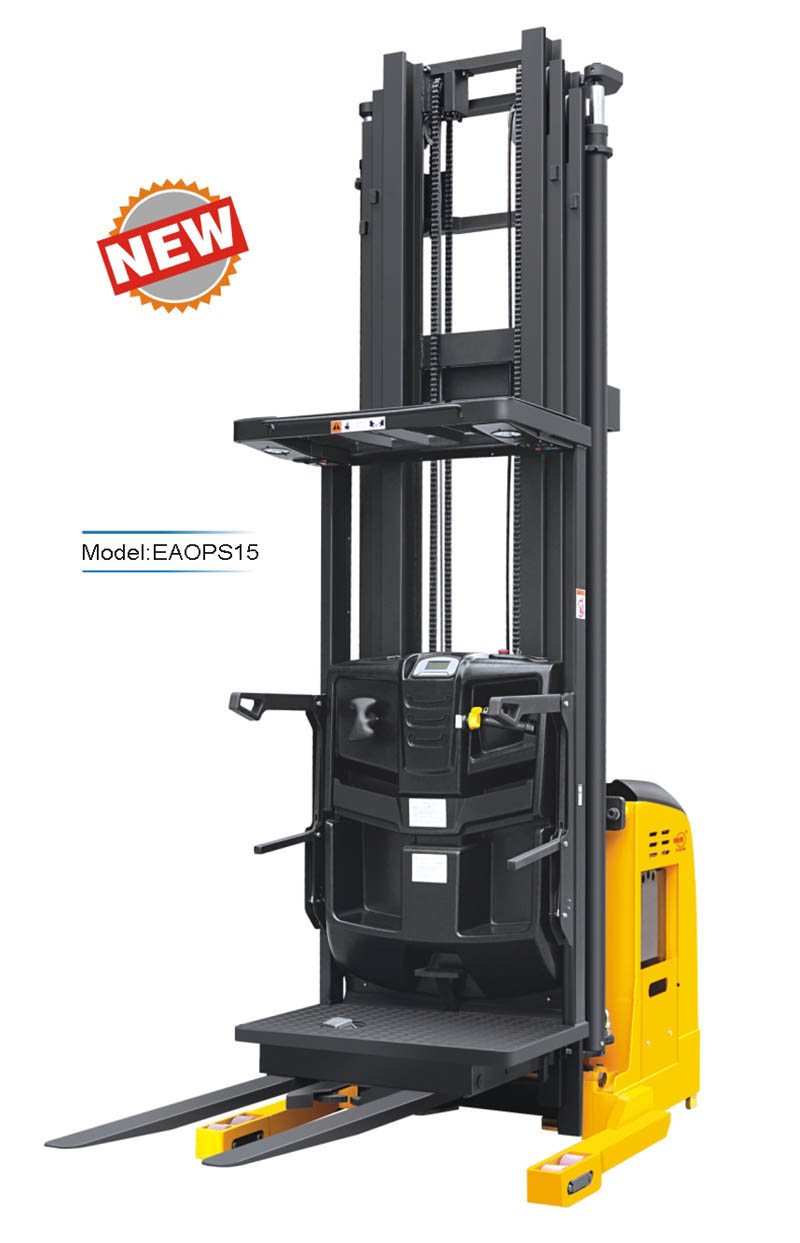

Model |
|
EAOPS15 |
|
Drive type |
|
Battery |
|
Operation type |
|
Order Picker |
|
Load capacity/rated load |
Q(kg) |
1500 |
|
Load centre distance |
c(mm) |
600 |
|
Load distance, centre of drive axle to fork |
x(mm) |
206 |
|
Wheelbase |
Y(mm) |
1236 |
|
Tyres |
|
polyurethane |
|
Height, mast lowered |
h1(mm) |
2410/3080/3750 |
|
Lifting Height |
h 3(mm) |
5000/7000/9000 |
|
Height , mast extended |
h4(mm) |
7230/9230/11230 |
|
Height of platform |
H7(mm) |
230 |
|
lowed height |
h13(mm) |
80 |
|
Overall length |
l1(mm) |
3200 |
|
Coupling height |
l2(mm) |
1975 |
|
Overall length |
b1/b2( (mm) |
1100/1352 |
|
Forks length |
s/e/l(mm) |
45/100/1220 |
|
Overall width |
b5(mm) |
530/715 |
|
height of ovehead guard |
h 6(mm) |
2290 |
|
Ground clearance , laden, below mast |
m1(mm) |
76 |
|
Ground clearance , centre of wheelbase |
m2(mm) |
51 |
|
Aisle width for pallets 1000×1200 crossways |
Ast(mm) |
1400 |
|
Aisle width for pallets 800×1200 lengthways |
Ast(mm) |
1000 |
|
Turning radius |
Wa(mm) |
1800 |
|
Travel speed, laden/unladen |
Km/h |
7.7/8 |
|
Lift speed, laden/unladen |
m/s |
0–0.15/0–0.28 |
|
Lowering speed, laden/unladen |
m/s |
0–0.28/0–0.30 |
|
Max.gradeability, laden/unladen |
% |
5/10 |
|
Service brake |
|
Electromagnetic |
|
Battery voltage, nominal capacity K5 |
V/Ah |
24/770(1100) |
|
Battery weight |
Kg |
610(850) |
|
Battery dimensions L/w/h |
mm |
982x397x561 |
|
Service weight (with battery) |
|
3870 | |
