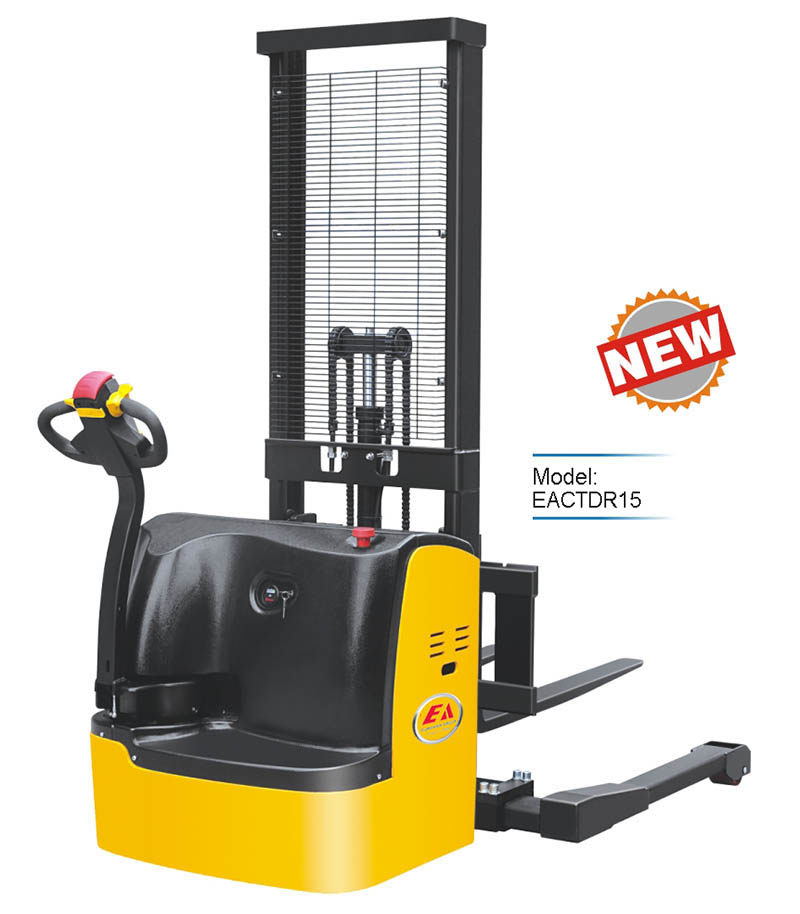

Product Description
• Advanced AC control system Intelligentized regenerative brake system.
• Multi-function display with BDI and fault code etc.
• Emergency reversing device.
• Auto deceleration system utilizes regenerative braking.
• Built-in pressure relief valve protects the trucks from overloads.
• Emergency power disconnect.
• Stepless speed control.
• With lifting limit switch to shut off pump motor at the max. lifting height.
• Standing drive motor system has a small turning radius. The motor structure is water-proof and dust-proof.
SERVICEABILITY:
• CANbus technology reduces wiring complexity and increase reliability.
• Advanced AC control system with brushless motor.
• Auto deceleration system utilises regenerative braking.
• Side-way battery with roll-out system is very convenient for replacement.
|
MODEL |
|
EACTDR15-I |
EACTDR15-II |
EACTDR15-III |
|
Drive type |
|
Electric |
Electric |
Electric |
|
Operation type |
|
walkie |
walkie |
walkie |
|
Load capacity/rated load |
Q(kg) |
1500 |
1500 |
1500 |
|
Load centre distance |
c(mm) |
600 |
600 |
600 |
|
Load distance, center of drive axle to fork |
x(mm) |
697 |
697 |
697 |
|
Fork height, lowered |
h13(mm) |
70 |
70 |
50 |
|
Wheelbase |
y(mm) |
1383 |
1383 |
1460 |
|
Max. lift height |
h3(mm) |
2500/3000/3300/
3500/4500/5000/5600 |
2500/3000/3300 |
|
Overall length |
l1(mm) |
1950 |
1950 |
1955 |
|
Length to face of forks |
l2(mm) |
890 |
890 |
878 |
|
Overall width |
b1(mm) |
1170-1560 |
1170-1560 |
1142-1532 |
|
Fork dimension |
s/e/l(mm) |
40/100/1070(1150) |
40/100/1070 |
|
Width overall forks |
b5(mm) |
200-800 |
200-800 |
900-1300 |
|
Aisle width for pallets 1000¡Á1200 crossways |
Ast(mm) |
2480 |
2480 |
2495 |
|
Aisle width for pallets 1000¡Á1200 lengthways |
Ast(mm) |
2450 |
2450 |
2465 |
|
Turning radius |
Wa(mm) |
1605 |
1605 |
1640 |
|
Travel speed, laden/unladen |
Kw/h |
5.8/6 |
5.8/6 |
5.8/6 |
|
Lift speed, laden/unladen |
m/s |
0¨C0.12/0¡ª0.19 |
0.11/0.15 |
0.06/0.13 |
|
Service brake |
|
Electromagnetic |
|
Battery voltage, nominal capactity K5 |
V/Ah |
24/300 |
24/240 |
24/200 |
|
Battery weight |
kg |
300 |
240 |
160 | |
