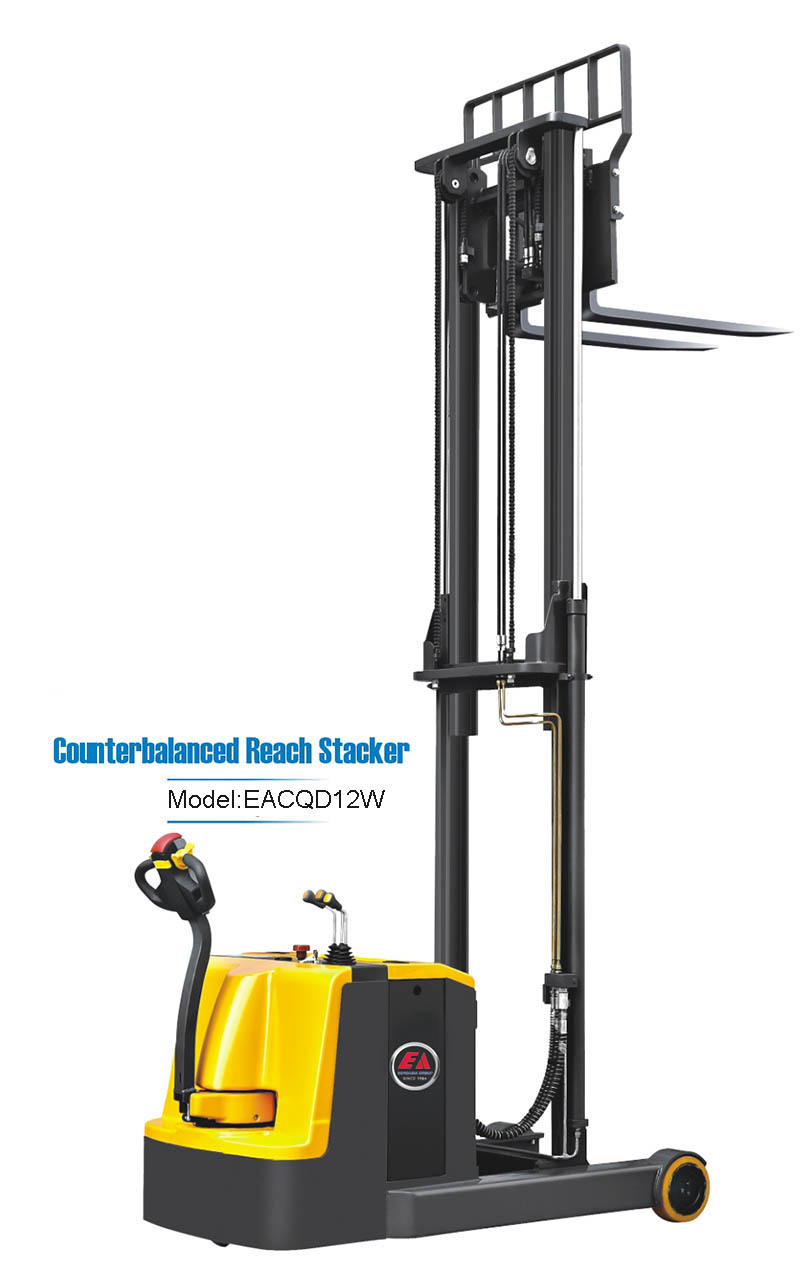

Product Description
¡ñ Long handle structure makes its steering light and flexible.
¡ñ Two lifting cylinders placed on outer sides of the mast, improves the lateral stability and widens operator view.
¡ñ Germany imported special steel mast.
¡ñ Adopts vertical driving wheel, with high driving efficiency and low noise, easy installation and maintenance.
¡ñ The truck has compact structure and low gravity which provides good steering stability.
¡ñ Without side plate on both side of battery box, it is good for heat dissipation and service.
SAFETY AND EFFICIENCY:
¡ñ AC frequency conversion traction motor: compact structure, good performance, regenerative braking and easy maintenance.
¡ñ The forks with tilting system easy for loading and stacker.
¡ñ The min. turning radius is 1560, which is fit for using in different narrow space.
¡ñ High Storage battery ensures strong and long-lasting power.
¡ñ Meter with BDI w/interrupt, prolonging the battery¡¯s using time.
¡ñ The braking system combines magnetic brake and regenerative break, greatly prolongs the using lift of friction plate.
¡ñ With emergency stop switch and electricity lock button, and multi-valve controlling levers, ergonomic for operation..
¡ñ The adjustable regulator valve can adjust the lowing speed of the masts.
EASY MAINTENANCE:
¡ñ Uses magnet suction for battery cover closing, no screw which is easy for installation and maintenance.
¡ñ AC controlling system with sensitive reaction, low noise, less maintenance and strong control ability of the speed.
| Model |
|
EACQD12W |
EACPD15W |
| Load capacity |
Q(kg) |
1250 |
1500 |
| Load center |
c(mm) |
500 |
500 |
| Load distance |
x(mm) |
430 |
520 |
| Tyre size, front |
mm |
¦µ250¡Á70 |
¦µ250¡Á70 |
| Tyre size, rear |
mm |
¦µ210¡Á85 |
¦µ210¡Á85 |
| Balance wheel size |
mm |
¦µ150¡Á60 |
¦µ150¡Á60 |
| Wheels, number front rear ( x=driven wheels) |
mm |
1x+2/2 |
1x+2/2 |
| Mast/ Forks obliquity front/back |
¡ã |
3/6 |
3/6 |
| Height, mast closed |
h1(mm) |
1820/2070/2320/1920/2080/2250/2420 |
1880/2118/2400/1953/
2128/2298/2495 |
| Free lift (option) |
h2(mm) |
0/0/0/1386/1550/1720/1886 |
0/0/0/1280/1480/1600/1870 |
| Max. lifting height |
h3(mm) |
2500/3000/3500/4000/4500/5000/5500 |
2500/3000/3500/4000/
4500/5000/5500 |
| Height, mast extended |
h4(mm) |
3300/3800/4300/4800/5300/5800/6300 |
3500/4000/4500/5000/
5500/6000/6600 |
| Height of tiller in drive position min./ max. |
h14(mm) |
1160/1460 |
1160/1460 |
| Overall length |
l1(mm) |
2150 |
2250 |
| Length to face of fork |
l2(mm) |
1200 |
1200 |
| Overall width |
b1(mm) |
990 |
990 |
| Fork dimension |
s/e/l(mm) |
35/100/950(1070/1150) |
35/100/950(1070/1150) |
| Fork carriage width |
b3(mm) |
220-680 |
220-680 |
| Reach distance |
l3(mm) |
560 |
650 |
| Aisle width for pallets 800¡Á1200 length ways |
Ast(mm) |
2650 |
2750 |
| Turning radius |
Wa(mm) |
1650 |
1750 |
| Travel speed, laden/ unladen |
kw/h |
6.8/7 |
6.8/7 |
| Lifting speed, laden/ unladen |
m/s |
0-0.13/0-0.2 |
0-0.13/0-0.2 |
| Lowering speed, laden/ unladen |
m/s |
0-0.42/0-0.41(adjustable) |
0-0.42/0-0.41(adjustable) |
| Battery volts./ Cap. |
v/ah |
24/270 |
24/270 |
| Batt, , er, y weight |
kg |
260-320 |
260-320 |
| Battery dimensions (l*w*h) |
mm |
825*213*590 |
825*213*590 |
| Service weight (with battery) |
kg |
1800 |
2140 | |
