SAFETY AND PRODUCTIVITY:
• Carry two pallets at one single time; the working performance is two times higher than normal trucks.
• Lowest closed height Max. is 1.38M.
• The tiller head is equipped with an emergency reverse direction switch, which provides safer operation.
• Built-in pressure relief valve protects the truck from overload, and increases the truck¡¯s safety.
• With stepless speed control and turtle low speed switch.
STRUCTURAL
• Vertical driving wheel offers small turning redius.
• The mast and the frame are dividable and exchange.
• Adjustable floating balance wheel is resistant to wear and stable.
• Sliding rail connects the moving part of the front and rear, makes lifting and lowing stably.
EASY MAINTENANCE
• CANbus technology reduces wiring complexity, and increase the truck¡¯s reliability.
• Hall-effect throttle control eliminates ware components and prolongs its use time.
• The balance wheel is detachable, convenient to maintain.
• Integral and modularized system makes the maintenance of the electrical parts convenient.
|
Model |
|

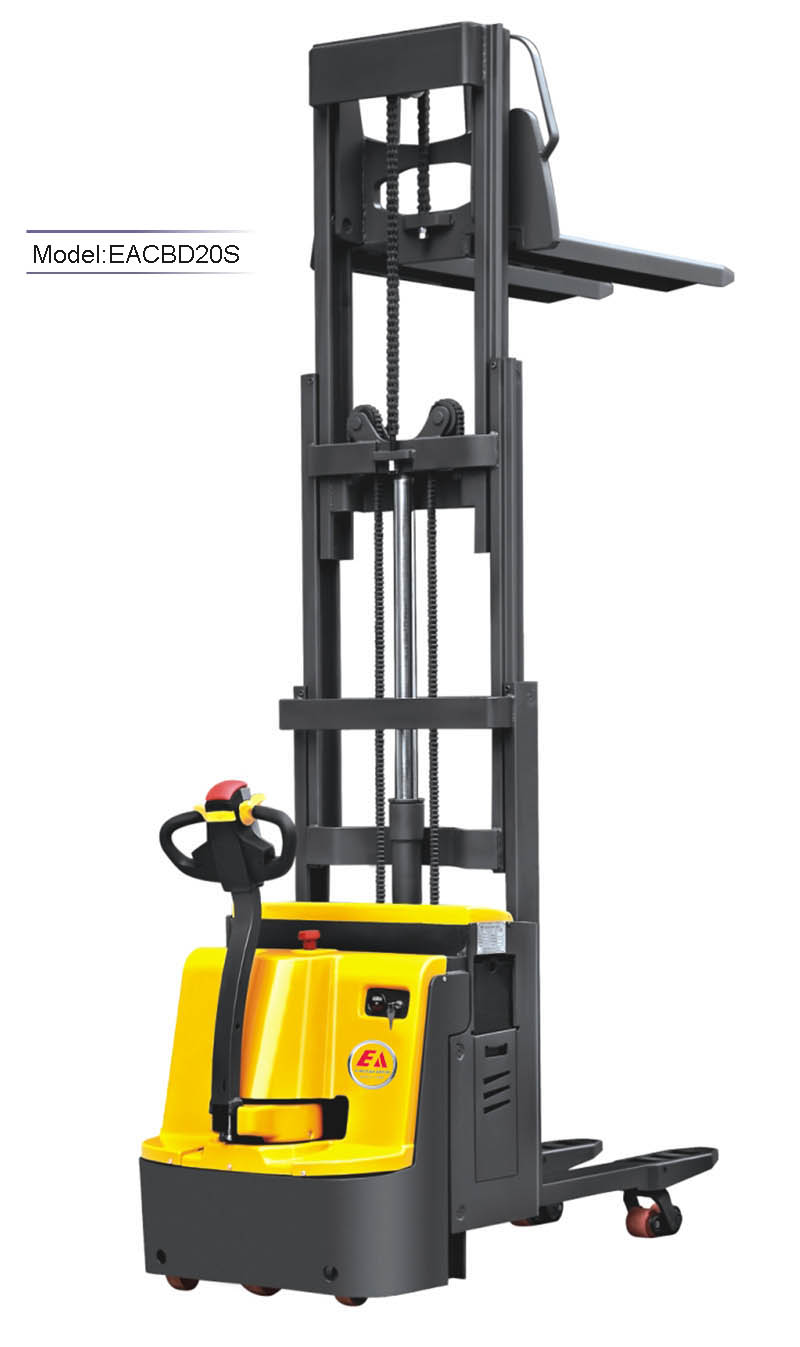

EACBD20S |
|
Drive type |
|
electric |
|
Operation type |
|
pedestrian |
|
Load capacity/rated load |
Q(kg) |
2000 |
|
Load capacity/rated load with mast lift |
Q(kg) |
1000 |
|
Load capacity/rated load with wheel arm lift |
Q(kg) |
2000 |
|
Load centre distance |
c(mm) |
600 |
|
Load idetance,centre of drive axle to fork |
x(mm) |
831 |
|
Fork height,lowered |
h13(mm) |
90 |
|
Wheelbase |
y(mm) |
1535 |
|
Axle loading,laden front/rear |
kg |
1180/1770 |
|
Axle loading,unlader front/rear |
kg |
650/300 |
|
Tyres |
|
polyurethane |
|
Tyre size,front |
mm |
¦µ250¡Á70 |
|
Tyre size,rear |
mm |
¦µ80¡Á70 |
|
Additional wheels(dimensions) |
mm |
¦µ127¡Á57 |
|
Wheels,number front rear(x=driven wheels) |
|
1X+2/4 |
|
Tread,front |
b10(mm) |
524 |
|
Tread,rear |
b11(mm) |
400/470 |
|
Height,mast lowered |
h1(mm) |
1382 |
|
Max.lift height |
h3(mm) |
2500 |
|
Initial lift |
h5(mm) |
120 |
|
Height of tilier in drive position min./max |
h14(mm) |
780/1230 |
|
Overall length |
l1(mm) |
1962 |
|
Length to face of forks |
l2(mm) |
862 |
|
Overall width |
b1(mm) |
775 |
|
Fork dimensions |
s/e/l(mm) |
60/180/1100 |
|
Width overall forks |
b5(mm) |
580/650 |
|
Ground clearance,centre of wheelbase |
m2(mm) |
20 |
|
Aisle width for pallets 1000¡Á1200 crossways |
Ast(mm) |
2238 |
|
Aisle width for pallets 800¡Á1200 crossways |
Ast(mm) |
2288 |
|
Turning radius |
Wa(mm) |
1705 |
|
Travel speed,laden/unladen |
Km/h |
4.5/5.2 |
|
Lift speed,laden/unladen |
m/s |
0.03/0.04 |
|
Lowering speed,laden/unladen |
m/s |
0.05/0.045 |
|
Max.gradeability,laden/unladen |
% |
6/12 |
|
Service brake |
|
Electromagnetic |
|
Battery voltagem,nominal capacity K5 |
V/Ah |
24/210 |
|
Battery weight |
kg |
196 |
|
Battery dimensions l/w/h |
mm |
750x170x580 |
|
Sound level at the driver¡¯s ear. To DIN 12053 |
Db(A) |
65 |
|
Service weight(with battery) |
kg |
950 |
