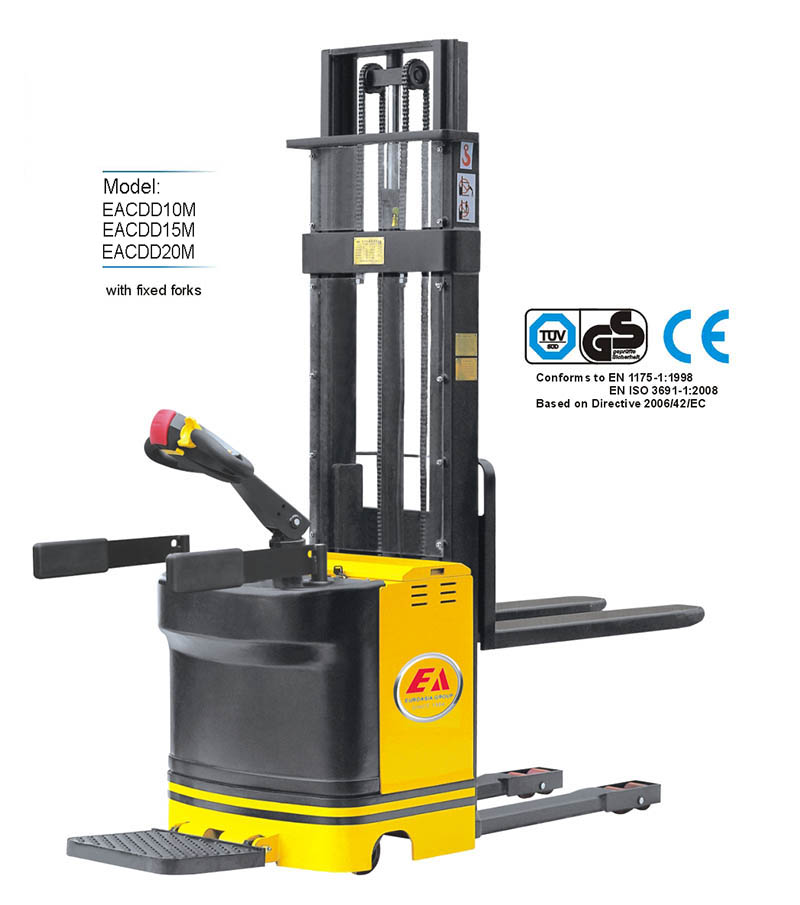

Produc Description
• Emergency reversing device.
• Built-in pressure relief valve protects the trucks from overloads.
• Emergency power disconnect.
• Low speed switch in the handle.
• Stepless speed control.
• The rubber platform and safety guides increase operator safety and reduce fatigue, and they can be folded away when not in use.
STRUCTURAL:
• The side located cyliders provides operators a wide view and ensures structural stability.
• Spring-loaded castors improve lateral stability on uneven floors and enhance truck performance and service life.
• Imported steel for the mast from Germany.
• Supporting legs.
SERVICEABILITY:
• Low battery protection setting prolongs the battery use time.
• CANbus technology reduces wiring complexity and increases reliability.
Remarks:
Heavy duty type Stacker, the full free lifting is only avaiable for lift from 4.5m to 5.8m.
|
Model |
|
EACDD20M |
|
Drive type |
|
electric |
|
Operation type |
|
standing |
|
Capacity |
Q(kg) |
2000 |
|
Load centre distance |
c(mm) |
500 |
|
Lowered fork height |
h13(mm) |
90 |
|
Wheelbase |
y(mm) |
1357 |
|
Tyres material |
|
polyurethane |
|
Height,mast lowered |
h1(mm) |
2087/2337/2407/2507 |
|
Max. lift height |
h3(mm) |
4500/5300/5500/5800 |
|
Height,mast extended |
h4(mm) |
5055/5823/6033/6333 |
|
Overall length |
l1(mm) |
1955 |
|
Length to face of forks |
l2(mm) |
805 |
|
Overall width |
b1(mm) |
1220.8-1630 |
|
Fork dimensions |
s/e/l(mm) |
60/170/1070(1150) |
|
Distance between fork-arms |
b5(mm) |
695 |
|
Aisle width for pallets
1000×1200 crossways |
Ast(mm) |
2464 |
|
Aisle width for pallets
800×1200 lengthways |
Ast(mm) |
2401 |
|
Turning radius |
Wa(mm) |
1629 |
|
Travel speed,laden/unladen |
Km/h |
4.5/5.6 |
|
Lift speed,laden/unladen |
m/s |
0.09/0.11 |
|
Lowering speed,laden/unladen |
m/s |
0.12/0.09 |
|
Service brake |
|
Electromagnetic |
|
Battery voltage,nominal
capacity K5 |
V/Ah |
24/275 |
|
Battery weight |
kg |
268 |
|
Service weight (with battery) |
kg |
1450/1630/1640/1655 | |
