Product Description
●Compact structure makes it’s easy to be used in narrow aisle.
●Stepless speed control, smooth/controllable speed
●Reach distance up to 500mm
●Fork can be tilted forward 3 degree or backward 5 degree
● Intelligentized regenerative brake system
|

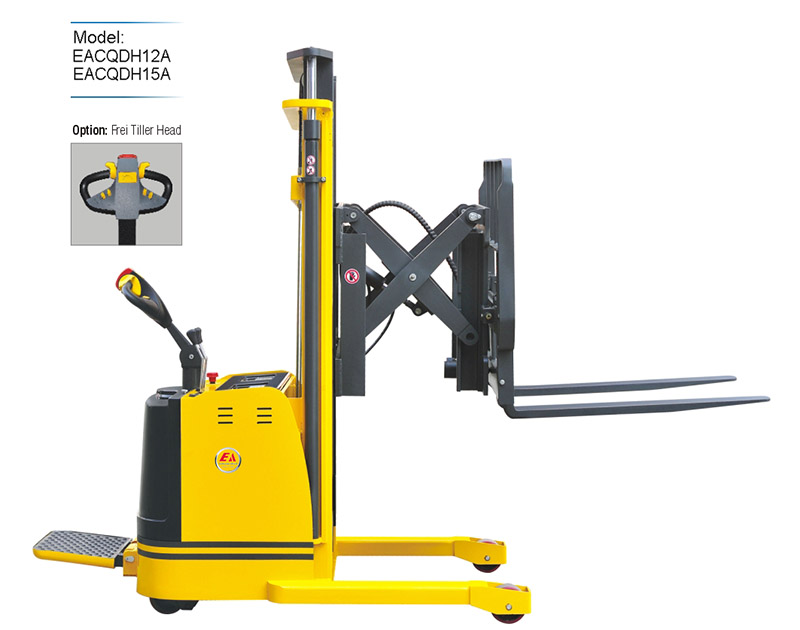

Model |
|
EACQDH12A |
EACQDH15A |
EACQDH20A |
|
Drive type |
|
Electric |
|
Operation type |
|
standing |
|
Load capacity/rated load |
Q(kg) |
1250 |
1500 |
2000 |
|
Load centre distance |
C(mm) |
500 |
|
Load distance, centre of drive axle to fork |
X(mm) |
375 |
365 |
365 |
|
wheels |
|
polyurethane |
|
Max. lift height |
h3(mm) |
2000/2500/3000/3500/4000/4500/5000/5500 |
|
Height,mast extended |
h4(mm) |
3070/3570/4070/4570/4920/5570/6070/6570 |
|
Length to face of forks |
l2(mm) |
1125 |
1125 |
1250 |
|
Overall width |
b1/b2(mm) |
950/1200 |
1240-1600/950 |
1250-1600/950 |
|
Fork dimensions |
s/e/l(mm) |
50/100/1070 |
45/100/1070 |
45/100/1070 |
|
Reach distance |
l4(mm) |
500 |
500 |
500 |
|
Ground clearance, centre of wheelbase |
m2(mm) |
65 |
50 |
50 |
|
Travel speed,laden/unladen |
Km/h |
4.5/5 /4.8/5 |
4.8/5 |
4.8/5 |
|
Lift speed,laden/unladen |
m/s |
0.095/0.12 |
0.095/0.12 |
0.095/0.12 |
|
Lowering speed,laden/unladen |
m/s |
0.2/0.15 |
0.2/0.15 |
0.2/0.15 |
|
Service brake |
|
electromagnetic |
|
Battery voltage,nominal capacity K5 |
V/Ah |
24/320 |
24/320(460) |
24/450(525) |
|
Battery weight |
kg |
275 |
275(300) |
325(350) | Option:
1) Side shift.
2)Full free lifting mast.
3) EPS (with vertical driving wheel). |
