Product Description
SAFETY AND PRODUNCTIVITY:
●AC Motor eliminates replacement of carbon brush.
●Multi-function display: battery power, fault code, hour meter and speed level;
●Side way battery is easy to maintain.
●Damping cushion for low-noise operation;
●Emergency reversing device in the handle provides higher safety for the whole operation.
●Auto deceleration function makes operation more safely.
●Built-in pressure relief valve protects the trucks from overloads, increases the reliability.
●Braking applied with handle upright and horizontal position, increasing the safety of the truck.
●Emergency power disconnect switch.
●Turtle-shaped low speed switch.
●Stepless control.
Optimum structural design:
●Low center of gravity ensures the stable operation.
●Vertical drive wheel ensures convenience for maintenance while also ensuring a small turning radius. The structure of motor is water-proof and dust-proof, which makes the braking and motor more durable and reliable.
●The mast and the frame are dividable and exchangable.
●Full free lifting, fit for working in low house. (The lifting height is 3 meters, can enter into a 2-meter height door).
Serviceability:
●Low battery protection setting prolongs the battery use time.
●The electronic components’ concentrated design simplify the circuit and makes easy access to assemble, debug and maintain,
●CANbus technology reduces wiring complexity and increase reliability.
●Hall element reduces wear components, resulting in increased component life.
|

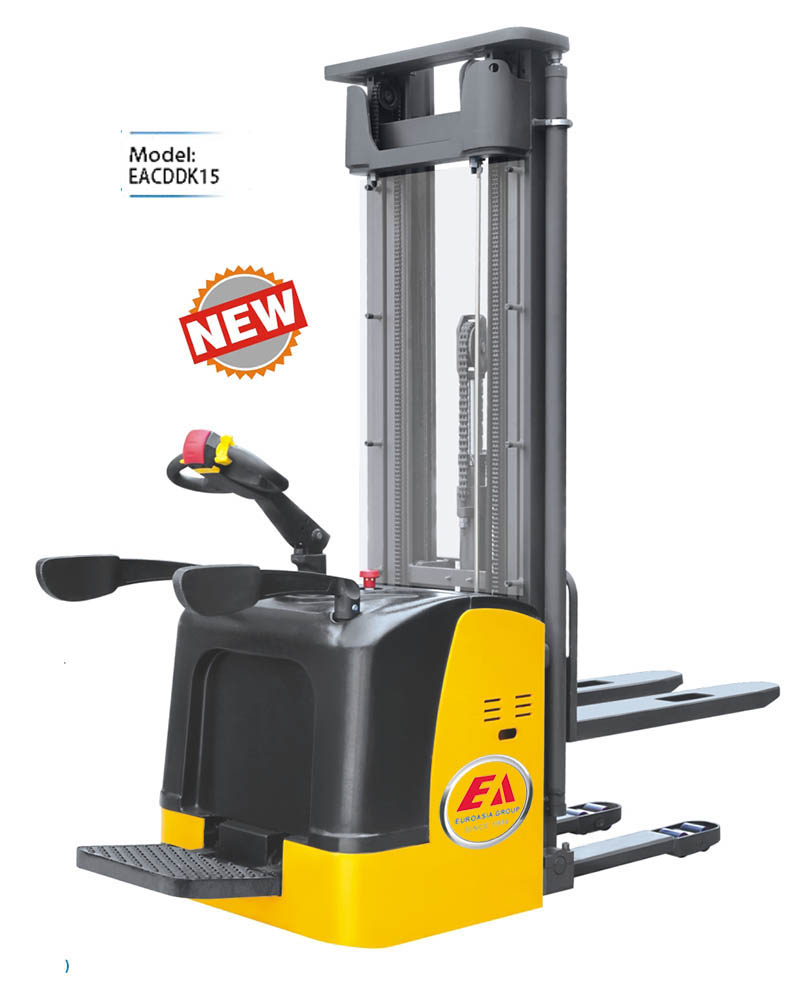

MODEL |
|
EACDDK15-II |
EACDDK15-III |
|
Drive type |
|
electric |
electric |
|
Operator type |
|
standing |
standing |
|
Load capacity/rated load |
Q(kg ) |
1500 |
1500 |
|
Load centre distance |
c(mm) |
600 |
500 |
|
Load distance,centre of drive axle to fork |
x(mm) |
672 |
697 |
|
Fork height,lowered |
h13(mm) |
90 |
90 |
|
Wheelbase |
y(mm) |
1378 |
1405 |
|
Axle loading,laden front/rear |
kg |
1440/1280 |
1280/1070 |
|
Axle loading,unladen front/rear |
kg |
870/350 |
200/650 |
|
Tyres |
|
polyurethane |
PU |
|
Tyre size,front |
mm |
φ250×70 |
φ250×70 |
|
Tyre size rear |
mm |
φ80×84 |
φ80×70 |
|
Additional wheels(dimensions) |
mm |
φ150×60 |
φ150×60 |
|
Wheels,number front rear(x=driven wheels) |
|
1x+2/4 |
1x+2/2 |
|
Tread,front |
b10(mm) |
580 |
586 |
|
Tread,rear |
b11(mm) |
404/530 |
410/525 |
|
Height,mast lowered |
h1(mm) |
1735/1985/2135/2235/
2050/2210/2410 |
1837/2087/2237 |
|
Free lift |
H2(mm) |
1300/1550/1700/1800/
1570/1740/1940 |
~ |
|
Max. Lift height |
H3mm) |
2500/3000/3300/3500/
4500/5000/5600 |
2500/3000/3300 |
|
Height,mast extended |
h4(mm) |
2955/3455/3755/3955/
5070/5550/6150 |
3087/3587/3887 | |
