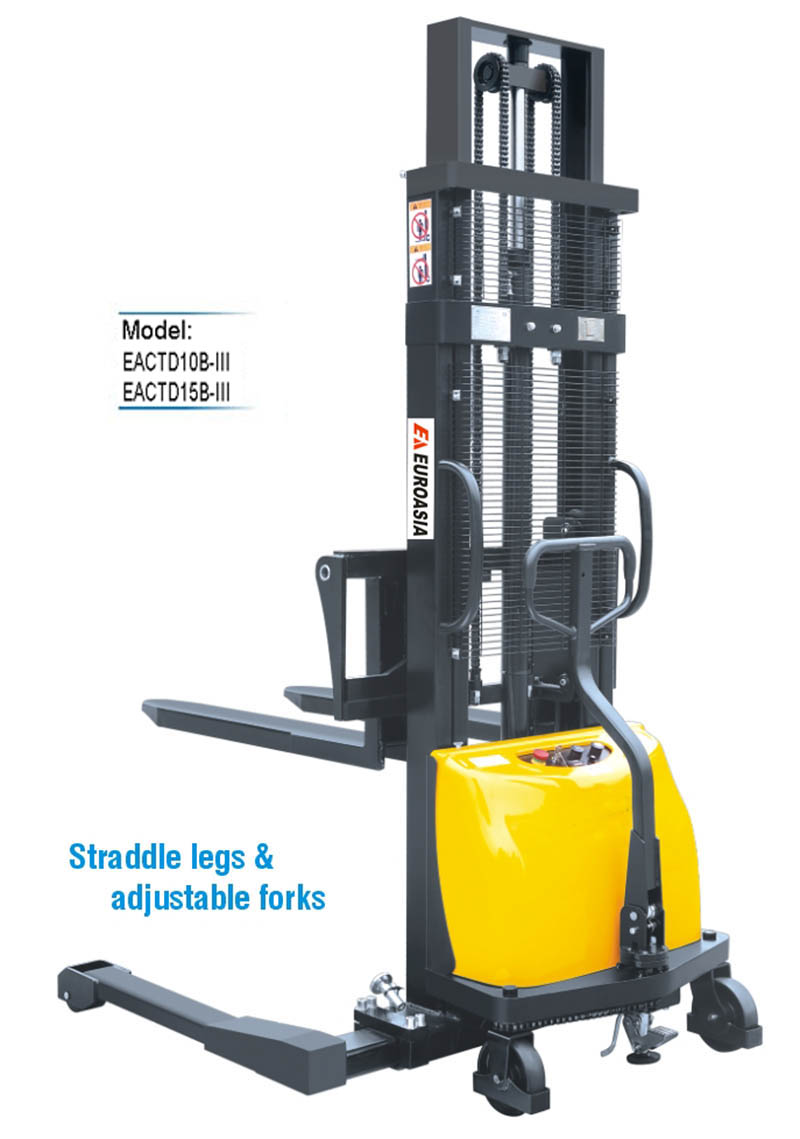

Product Description
• Handle-castor chain assist steering system greatly reduces the labor intensity.
• Equipped with explosion-proof valve,ensure no sharp drop of platform and prevent operator from harm.
• Over-discharge protection device greatly prolongs the battery use time.
• With adjustable forks,which can be lowered to the same level of the legs.
• Easy operating foot brake.
|
MODEL |
|
Adjustable forks |
|
EACTD10B -Ⅲ |
EACTD15B -Ⅲ |
|
Load capacity |
Q(kg) |
1000 |
1500 |
|
Load centre distance |
c(mm) |
500 |
500 |
|
Fork height, lowered |
h13(mm) |
80 |
80 |
|
Wheelbase |
y(mm) |
1295 |
1375 |
|
Tyres |
|
nylon |
|
Height, mast lowered |
h1(mm) |
2145/1895/2145 |
|
Max. lift height |
h3(mm) |
1600/2500/3000 |
|
Height, mast extended |
h4(mm) |
2145/3100/3600 |
|
Overall length |
l1(mm) |
1735 |
1835 |
|
Length to face of forks |
l2(mm) |
665 |
765 |
|
Overall width |
b1(mm) |
1132-1532 |
|
Fork dimensions |
s/e/l(mm) |
60/142/1070 |
|
Width overall forks |
b5(mm) |
295-930 |
|
Aisle width for pallets 1000×1200 crossways |
Ast(mm) |
2288 |
2368 |
|
Aisle width for pallets 800×1200 lengthways |
Ast(mm) |
2267 |
2347 |
|
Turning radius |
Wa(mm) |
1425 |
1505 |
|
Lift speed, laden/unladen |
m/s |
0.08/0.1 |
|
Lowering speed, laden/unladen |
m/s |
0.15/0.12 |
|
Service brake |
|
Mechanical |
|
Battery voltage, nominal capacity K5 |
V/Ah |
12/120 |
12/120 |
|
Battery weight |
kg |
45 |
90 |
|
Service weight(with battery) |
kg |
400/475/490 |
470/536/550 | |
