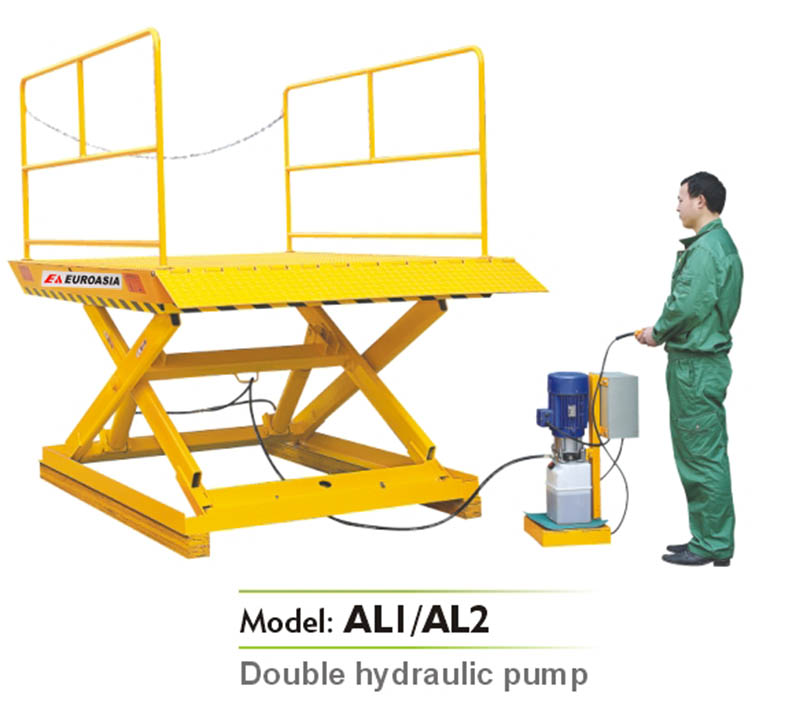

Product Description
¡ñ Designed for industrial heavy applications (as part of a production process, for machine feeding or stacking etc.)
¡ñ Double acting hydraulic cylinders.
¡ñ Lifting limit switch.
¡ñ Alum table frame protects workers from injury by cutting off power.
| MODEL |
|
AL1 |
AL2 |
| Capacity |
kg |
2700 |
1000 |
| Max. lift height |
h12(mm) |
1700 |
1080 |
| Min. lift height |
h13(mm) |
220 |
65 |
| Lifting height |
h3(mm) |
1480 |
915 |
| Table size |
l¡Áb5¡Ás(mm) |
2445¡Á1830¡Á195 |
1220¡Á610¡Á70 |
| Motor |
kw |
3.0 |
0.75/1.5 |
| Voltage |
V |
220/380 |
220/380 |
| Rise time |
S |
40 |
25 |
| Lowering speed |
mm/s |
£¼150 |
£¼150 |
| Service weight |
kg |
945 |
260 | |
