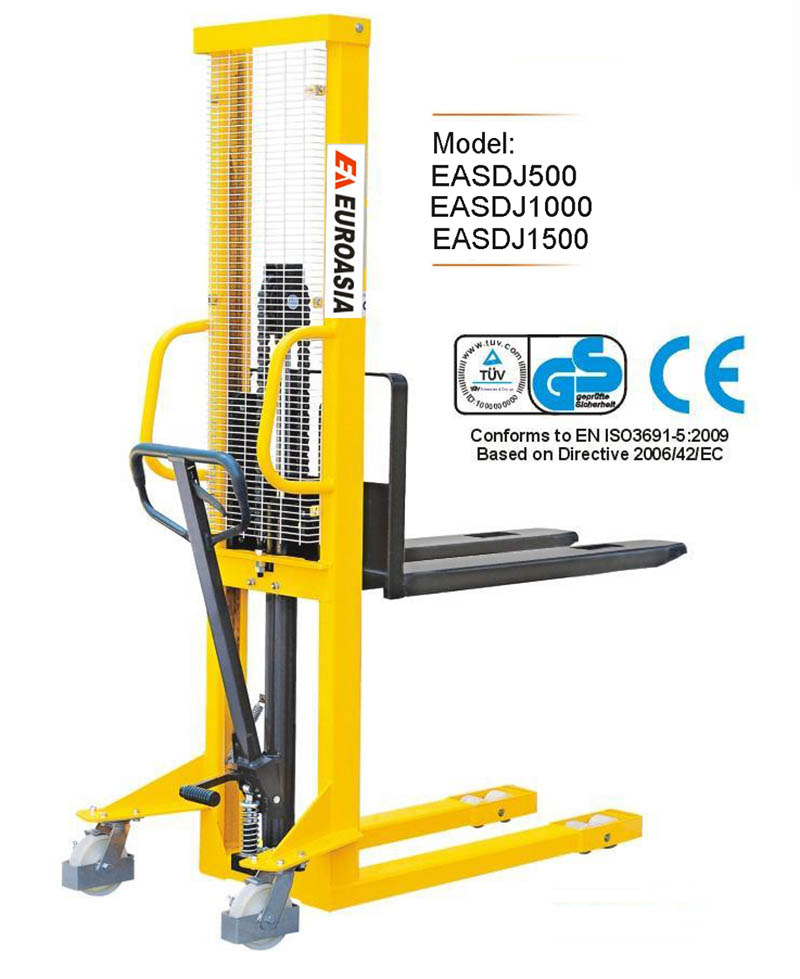

Model

EASDJ500

EASDJ1000

EASDJ1500

 Load capacity/rated load

 Q(kg)

500

1000

1500

 Load centre distance

 c(mm)

600

600

400

 Fork height,lowered

 h13(mm)

90

90

90

 Height, mast lowered

 h1(mm)

1490/2080

1490/1720/2080/1838/2080

2080

 Max. lift height

 h3(mm)

1000/1600

1000/1200/1600/2500/3000

1600

 Height, mast extended

 h4(mm)

1490/2080

1490/1720/2080/2925/3420

2080

 Overall length

 l1(mm)

1655/1705

1655/1705

1655/1705

 Overall width

 b1(mm)

755

755/755/755/860/860

755

 Fork dimensions

 s/e/l(mm)

61/170/1100(1150)

 Distance between fork-arms

 b5(mm)

550

550/550/550/580/580

550

 Round clearance, laden,below mast

 m1(mm)

25

25

25

 Aisle width for pallets 1000×1200 crossways

 Ast(mm)

2112

2112

2112

 Aisle width for pallets 800×1200 lengthways

 Ast(mm)

1945

1945

1945

 Turning radius

 Wa(mm)

1380

1380

1380

 Lift speed,laden/unladen

 mm/time

25

25

21

 Lowering speed,laden/unladen

 mm/time

Manual control

 Service weight

 kg

185/205

183/191/210/286/307

245
