Model

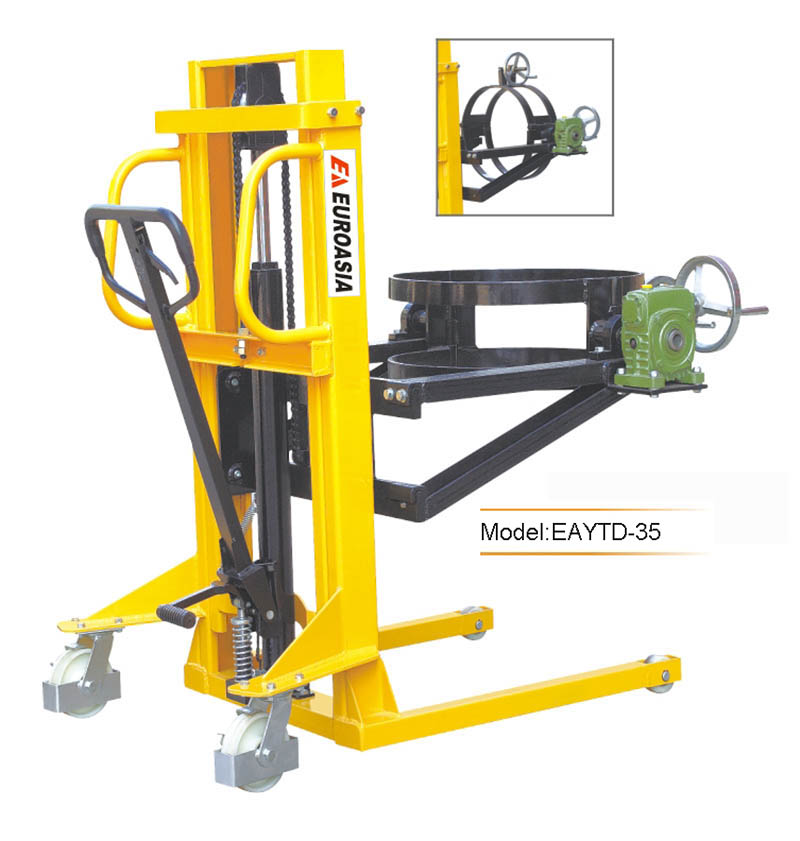

EAYTD-35

 Capacity

 Q(kg)

350

 Load centre distance

 c(mm)

570

 Wheelbase

 y(mm)

1115

 Tyre size,front

 (mm)

φ80×36

 Tyre size rear

 (mm)

φ147×40

 Height,mast lowered

 h1(mm)

1270/1490

 Max. lift height

 h3(mm)

1945/2385

 Height,mast extended

 h4(mm)

2100/2640

 Lowered fork height

 h13(mm)

385

 Overall length

 l1(mm)

1520

 Overall width

 b1(mm)

1050

 Distance between fork-arms

 b5(mm)

840

 Ground clearance,laden,below mast

 m1(mm)

22

 Turning radius

 Wa(mm)

1200

 Lowering speed,laden/unladen

 mm/s

manual control
