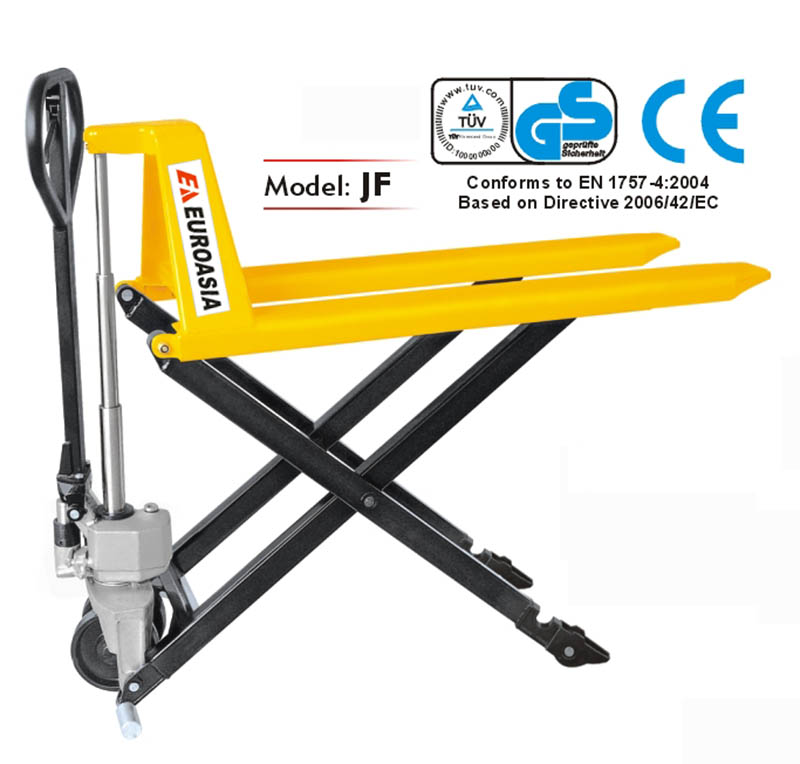

Product Description
• Ideal design with numerous possibilities makes this unit very suitable as pallet truck/scissor lift table.
• Telescopic jack composes of 3 piston rods creating light pumping force giving great rigidity.
• Support legs come into operation automatically.
• It prevents the unit from moving when the forks are raised to keep the safety of the operator.
• Truck automatically slows the descending speed when heavy goods loaded to prevent cargo damage.
• 210 degree turning radius.
• 2 lateral stabilizers when raised ensure good stability.
|
Model |
|
JF |
|
Capacity |
Q(kg) |
1000 |
|
Lowered fork height |
h13(mm) |
85 |
|
Steering wheel |
mm |
¦µ180X50 |
|
Fork wheel |
mm |
¦µ74X50 |
|
Fork length |
l(mm) |
1150 |
|
Width overall forks |
b5(mm) |
520/550/685 |
|
Aisle width for pallets 1000”Į1200 crossways |
Ast(mm) |
1715 |
|
Aisle width for pallets 800”Į1200 lengthways |
Ast(mm) |
1765 |
|
Turning radius |
Wa(mm) |
1360 |
|
Service weight |
kg |
108-112 | |
