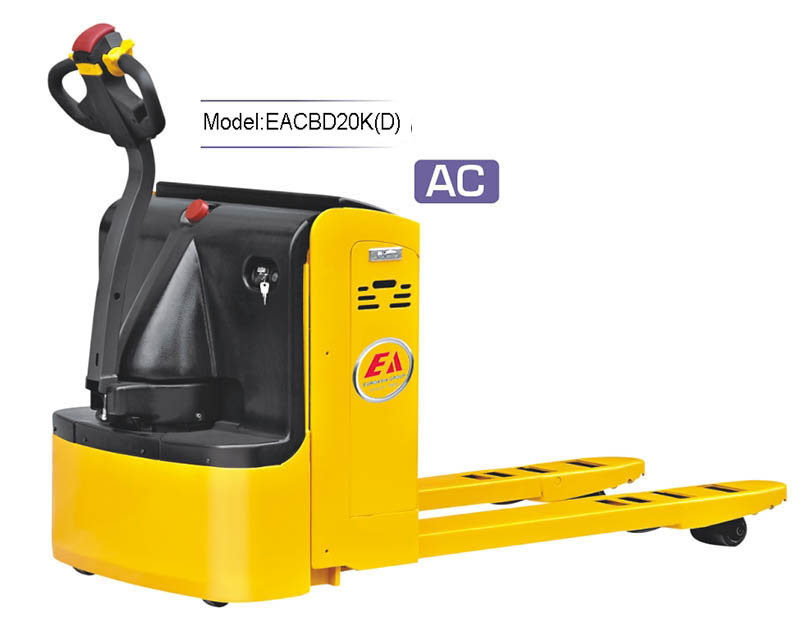

Product Description
• Advanced AC control system eliminating the motor brushes and directional contactors, which makes the minimal maintenance requirements. Intelligentized regenerative brake system: increase overall truck performance by decreasing battery charge intervals.
• Side-way battery with roll-out system is very convenient to replace batteries.
• Emergency reversing device.
• Built-in pressure relief valve protects the trucks from overloads.
• Long handle tube gives flexible and laborsaving operation.
• Emergency power disconnect.
• Low speed switch in the handle.
• Stepless speed control.
STRUCTURAL:
• Vertical driving wheel offers small turning radius. The structure is water-proof and dust-proof.
• The riser axle located at the highest point of forks, which protect riser axles from constant contact from uneven floors. Pull rod design protect the rod from bending.
• Spring-loaded castors improve lateral stability on uneven floors and enhance truck performance and service life.
• One-piece heavy gauge steel is formed for maximum strength forks.
SERVICEABILITY:
• Low battery protection setting prolongs the battery use time.
• CANbus technology reduces wiring complexity and increases reliability.
• All pivot points have grease fitting and serviceable bushing, reducing component wear and extending component life.
|
Model |
|
EACBD20K(C) |
|
Drive |
|
Electric |
|
Load capacity |
Q(kg) |
2000 |
|
Load centre distance |
c(mm) |
600 |
|
Fork height, lowered |
h13(mm) |
82 |
|
Tyres |
|
Polyurethane |
|
Tyre size, front |
mm |
¦µ250”Į70 |
|
Tyre size, rear |
mm |
¦µ82”Į126 |
|
Additional wheels(dimensions) |
mm |
¦µ127”Į57 |
|
Max.lift height |
h3(mm) |
120 |
|
Height of tilier in drive position min./max |
h14(mm) |
780/1230 |
|
Overall length |
l1(mm) |
1673/1723/1793 |
|
Length to face of forks |
l2(mm) |
573 |
|
Overall width |
b1(mm) |
775 |
|
Fork dimensions |
s/e/l(mm) |
54 x186 x1100(1150/1220) |
|
Width overall forks |
b5(mm) |
556/656/691 |
|
Travel speed,laden/unladen |
Km/h |
5.5/5.6 |
|
Gradeability, laden/unladen |
% |
6/12 |
|
Max. gradeability, laden/unladen |
% |
8/20 |
|
Service brake |
|
Electro magnetic |
|
Battery voltagem,nominal capacity K5 |
V/Ah |
24/165(210) |
|
Battery weight |
kg |
170 |
|
Battery dimensions l/w/h |
mm |
750 x170 x474(534) |
|
Service weight(with battery) |
kg |
690 | |
