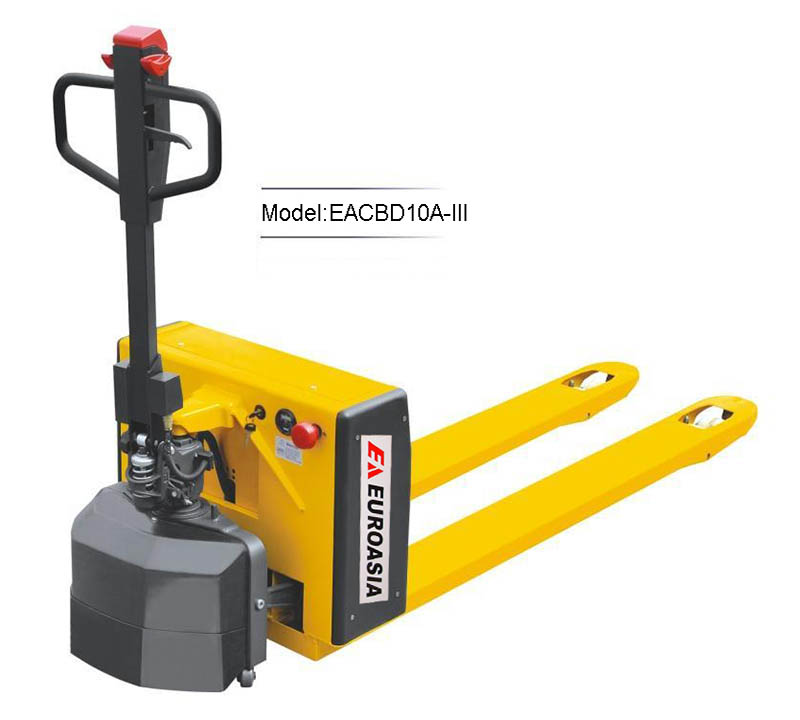

Product Description
• Two-speed driving system.
• Emergency brake switch.
• Manual lifting and motor driving.
• AC motor,no carbon brush,maintenance free,low noise.
• Sealed batteries free of maintenance,safe operation and no pollution.
• Built-in charger.
|
Model |
|
EACBD10A-Ⅱ |
|
Load Capacity |
Q(kg) |
1000 |
|
Load centre distance |
c(mm) |
500 |
|
Lowered fork height |
h13(mm) |
85/75 |
|
Wheelbase |
y(mm) |
1280/1350 |
|
Tyre size,front |
mm |
Φ185 |
|
Tyre size,rear |
mm |
Φ80/Φ74 |
|
Max. lift height |
h3(mm) |
200/190 |
|
Height of tiller in drive position min./max. |
h14(mm) |
1244 |
|
Overall length |
l1(mm) |
1685/1755 |
|
Length to face of forks |
l2(mm) |
535 |
|
Fork dimensions |
s/e/l(mm) |
45/160/1150(1220) |
|
Width overall forks |
b5(mm) |
520/550/680 |
|
Ground clearance,centre of wheelbase |
m2(mm) |
40/30 |
|
Aisle width for pallets 1000×1200 crossways |
Ast(mm) |
1885/1955 |
|
Aisle width for pallets 800×1200 lengthways |
Ast(mm) |
1935/1955 |
|
Turning radius |
Wa(mm) |
1490/1560 |
|
Travel speed,laden/unladen |
Km/h |
2.6/3.8 |
|
Max.gradeability,laden/unladen |
% |
5/15 |
|
Battery voltage,nominal capacity K5 |
V/Ah |
24/38 |
|
Battery weight |
kg |
26 |
|
Service weight (with battery) |
kg |
150 | |
