Standard features
• Germany FREI Tiller Hand
¡ñ Emergency stop & belly button
¡ñ BDI and hour meter
¡ñ Casters to balance stability
¡ñ Industrial battery
¡ñ Brushless AC motor
¡ñ Vertical driving wheel
¡ñ Sideway battery change
¡ñ Built-in Charger (option)
¡ñ Platform with speed sensor
|

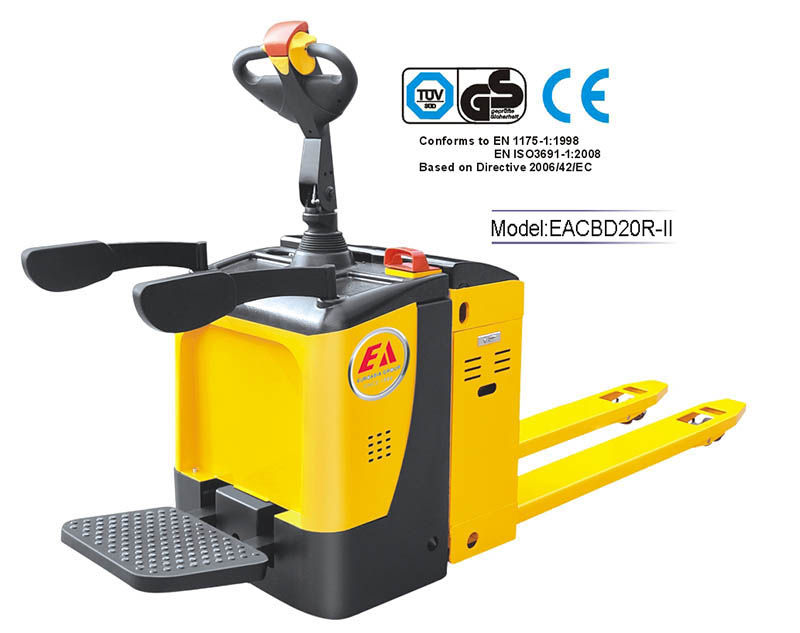

Model |
|
EACBD20R-II |
|
Drive type |
|
electric |
|
Operation type |
|
standing |
|
Load capacity |
Q(kg) |
2000 |
|
Load centre distance |
c(mm) |
600 |
|
Load idetance,centre of drive axle to fork |
x(mm) |
815/865/935 |
|
Fork height,lowered |
h13(mm) |
82 |
|
Wheelbase |
y(mm) |
1211/1261/1331 |
|
Tyres |
|
polyurethane |
|
Max.lift height |
h3(mm) |
202 |
|
Height of tilier in drive position min./max |
h14(mm) |
1150/1430 |
|
Overall length |
l1(mm) |
1710/1760/1830 |
|
Overall width |
b1(mm) |
775 |
|
Fork dimensions |
s/e/l(mm) |
53X180X1100(1150/1220) |
|
Width overall forks |
b5(mm) |
520/550/650/685 |
|
Aisle width for pallets 1000¡Á1200 crossways |
Ast(mm) |
1910/1960/2030 |
|
Aisle width for pallets 800¡Á1200 crossways |
Ast(mm) |
2010/2010/2030 |
|
Turning radius |
Wa(mm) |
1550/1600/1670 |
|
Travel speed,laden/unladen |
Km/h |
7/7.1 |
|
Battery voltagem,nominal capacity K5 |
V/Ah |
24/210 |
|
Battery weight |
kg |
170 |
|
Service weight(with battery) |
kg |
710 |
