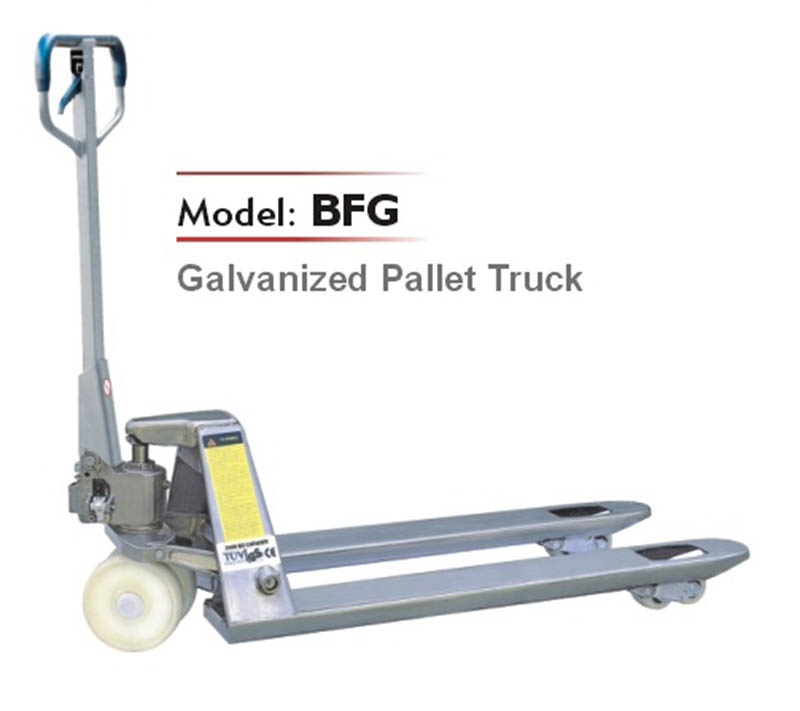

Model

BFG

 Capacity

 Q(kg)

2500

 Lowered fork height

 h13(mm)

85/75

 Steering wheel

 mm

φ200/φ180

 Fork wheel single

 mm

φ80×93/φ74×93

 Fork wheel tandem

 mm

φ80×70/φ74×70

 Max. lift height

 h3(mm)

200/190

 Total height

 h14(mm)

1224

 Overall length

 l1(mm)

1533/1603

 Fork dimensions

 s/e/l

53/160/1150(1220)

 Width overall forks

 b5(mm)

520/550/685

 Ground clearance,centre of wheelbase

 m2(mm)

32/22

 Aisle width for pallets 1000×1200 crossways

 Ast(mm)

1733/1803

 Aisle width for pallets 800×1200 lengthways

 Ast(mm)

1783/1803

 Turning radius

 Wa(mm)

1266/1336

 Service weight

 kg

65-80
