●Frame force is more reasonable , and the strength is more reliable.

●Handle seat has hole it is more convenient for installation of control chain.

●Forks lowering speed is controllable, with overload valve to avoid overloading.

Remark: Special size for width and length can be made according to customer’s requirement.

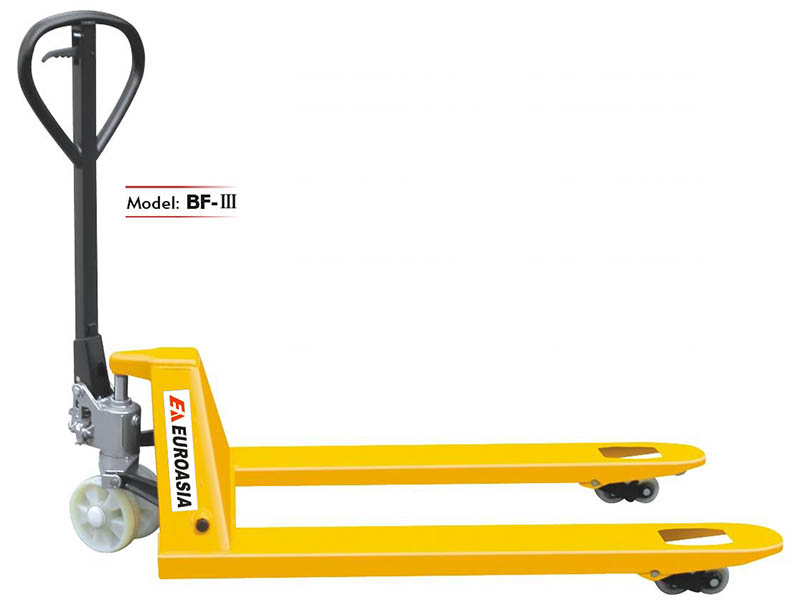

Model		BF-III
Capacity	Q(kg)	2500	2500
Lowered fork height	H13(mm)	85	75
steering wheel	mm	φ180	φ180
fork wheel single	mm	φ74×93	φ74×93
fork wheel double	mm	φ74×70	φ74×70
Max. Lifting height	h3(mm)	195	185
Height of tiller in drive position min./max.	h14(mm)	1214	1214
Overall length	l1(mm)	1543/1613	1543/1613
Fork length	l(mm)	1150/1220	1150/1220
Width overall forks	b5(mm)	520/550/685	520/550/685
Ground clearance, center of wheelbase	m2(mm)	32	22
Aisle width for pallets 1000×1200 crossways	Ast(mm)	1743/1813	1743/1813
Aisle width for pallets 800×1200 lengthways	Ast(mm)	1783/1813	1783/1813
Turning radius	Wa(mm)	1276/1346	1276/1346
Service weight	kg	58-70	58-70

Option:

1) steering wheel 200mm (fork wheel 80mm) are available.

2) Nylon wheel, polyurethane wheel, rubber wheel, single fork roller or tandem fork rollers.

3) Fork length:800mm,900mm,1000mm,1100mm.

4) Foot pedal release.

5)Pump color: black paiting.

6)Quick lift (double speed lifting)
