Product Description
STABILITY
●The large and strong chassis ensures sufficient stability of the forklift.

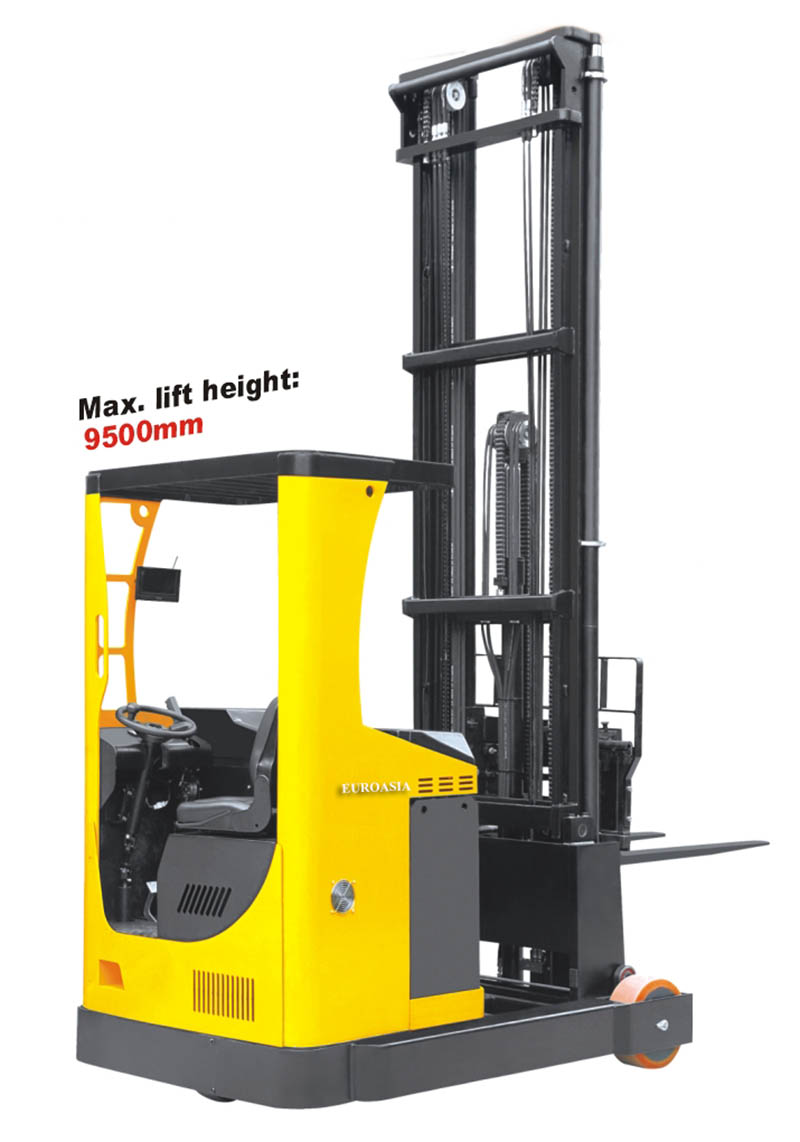

●The max lifting height can reach 9.5 meter.
●Use “H” type mast steel is imported from Germany enhance the use time and stability.
●Large and comfortable compartment with adjustable seat reflects a concept of ergonomic design.
●Use double controllers to realize stepless speed regulation of both lifting and travelling.
SFETY AND HGH EFFICIENCY
●Have safety travelling speed limited device in the mast. Travelling speed will automatic lowering when forks height is up 5M.
●Full hydraulic steering system makes turning easy and flexible.
●Adopts hydraulic brake for two front wheel and electric brake for electric brake for driving motor, offer simple operation for travelling and braking .
●Integrated design of driving and steering system without chain transmission, resolve the problems of chain fall-off caused by chain transmission.
EASY MAINTENANCE
●Battery changing offers two type methods:
(1)Side way battery changing by a trolley
(2) Automatic push- out and pull-in function by a simple battery handle controller
●Bolt fixed back cover is easy to open for daily maintenance.
|
Model |
|
CQD20 |
CQD20H |
|
Power |
|
electric |
electric |
|
Operator type |
|
seated |
seated |
|
Capacity/rated load |
Q(kg) |
2000 |
2000 |
|
Lift height |
h3(mm) |
3000/5000/6200/7400 |
8000/8600/9500 |
|
Load centre distance |
c(mm) |
500 |
500 |
|
Load distance,centre of driva axie to fork |
x(mm) |
380 |
320 |
|
Wheelbase |
y(mm) |
1500 |
1500 |
|
Service weight |
kg |
3300/3700/3800/3900 |
4100/4150/4240 |
|
Tyres type |
|
polyurethane |
polyurethane |
|
Drive wheel |
mm |
φ406×152 |
φ406×152 |
|
Fork wheel |
mm |
φ340×104 |
φ340×104 |
|
Wheels,number front rear(x=driven wheels) |
|
2.1 |
2.1 |
|
Height,mast lowered |
h1(mm) |
2086/2240/2740/3190 |
3390/3590/3890 |
|
Height,mast extended |
h4(mm) |
3800/5800/7000/8200 |
8800/9400/10300 |
|
Height of overhead guard(cabin) |
h6(mm) |
2200 |
2200 |
|
Seat height/stand height |
h7(mm) |
1068 |
1068 |
|
Overall length |
l1(mm) |
2440 |
2510 |
|
Length(barring fork) |
l2(mm) |
1950 |
1950 |
|
Overall width |
b1(mm) |
1260 |
1510 |
|
Fork dimensions |
s/e/l(mm) |
40/120/1070 |
40/120/1070 |
|
Fork carriage width |
b3(mm) |
928 |
928 |
|
Distance between fork-arms |
b5(mm) |
680 |
850 |
|
Recah distance |
l4(mm) |
600 |
600 |
|
Aisle width for pallets 1000×1200 crossways |
Ast(mm) |
2880 |
2880 |
|
Aisle width for pallets 800×1200 lengthways |
Ast(mm) |
2930 |
2930 |
|
Turning radius |
Wa(mm) |
1820 |
1820 |
|
Travel speed ,laden/unladen |
Km/h |
8/8.3 |
8/8.3 |
|
Lift speed, laden/unladen |
m/s |
0.19/0.2 |
0.19/0.2 |
|
Lowering speed, laden/unladen |
m/s |
0.5/0.4 |
0.5/0.4 |
|
Acceleration time, laden/unladen |
s |
4.8,4.3 |
4.8,4.3 |
|
Service brake |
|
hydraulic |
hydraulic |
|
Battery voltage,nominal capacity K5 |
V/Ah |
48/500 |
48/500 |
|
Battery weight |
kg |
860 |
860 |
|
Battery dimensions l/w/h |
mm |
1220x344x727 |
1220x344x727 |
|
Type of drive control |
|
DC/AC |
DC/AC | |
