Product Description

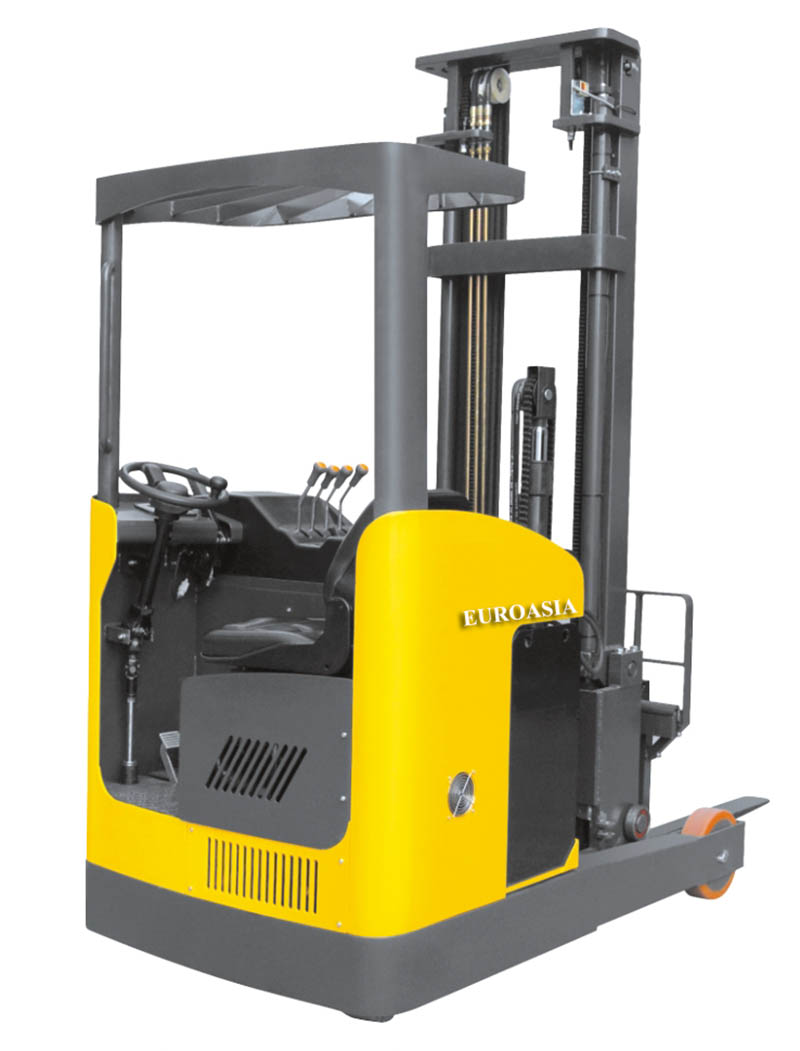

The CQD series Counterbalanced Reach lift truck developed by Ningbo Ruyi, with innovative design and application-oriented functionality, low noise, no pollution and a small turning radius. With its high lifting height and good stability, it is widely used for high-shelves operation in narrow aisle warehouses, supermarkets, etc.
ITS FEATURES INCLUDE:
¡ñTruck with small width from 1020-1100mm, turning radius from 1700-1740mm and narrow cabin to ensure trucks can be used in drive- in racks.
¡ñAvailable in either DC or AC power options.
¡ñFor daily maintenance of the battery, you DON¡¯T NEED to hang up the battery box. Simply using a battery handle controller, you can automatically remove and replace the battery box.
¡ñEquipped with two separate floating devices, which enhances stability in terms of structure, reducing weight, and prolonging the working life of the driving wheels.
¡ñFull hydraulic steering system, with integrative design of driving and steering, provides low-effort and flexible power steering.
¡ñIntegrated driving and turning systems.
¡ñA fully hydraulic steering system ensures flexible turning, and requires less maintenance.
¡ñOptional high-level video system places a camera in the top skid, allowing the operator enhanced visibility.
¡ñHeight selection and height positioning system is a high-level configuration, which with manual and automatic control, for automatic positioning with a keypad, enabling the operator to choose the appropriate lift height (optional).
| Model |
|
CQD10L |
CQD15L |
| Power |
|
electric |
electric |
| Operator type |
|
standing |
standing |
| Capacity distance |
Q(kg) |
1000 |
1500 |
| Lift height |
h3(mm) |
3000/5000/6200 |
| Load centre distance |
c(mm) |
500 |
500 |
| Wheelbase |
y(mm) |
1380/1480/1480 |
1480 |
| Service weight |
kg |
2140/2540/2640 |
2340/2740/2840 |
| Tyres type |
|
polyurethane |
| Height,mast lowered |
h1(mm) |
2086/2240/2640 |
| Height,mast extended |
h4(mm) |
3800/5800/7000 |
| Height of overhead guard(cabin) |
h6(mm) |
2200 |
2200 |
| stand height |
h7(mm) |
295 |
295 |
| Overall length |
l1(mm) |
2360 |
2360 |
| Overall width |
b1(mm) |
1020 |
1020 |
| Fork dimensions |
s/e/l(mm) |
36/100/1070 |
40/100/1070 |
| Fork-carriage width |
b3(mm) |
660 |
660 |
| Aisle width for pallets 1000¡Á1200 crossways |
Ast(mm) |
2800 |
2800 |
| Aisle width for pallets 800¡Á1200 lengthways |
Ast(mm) |
2850 |
2850 |
| Turning radius |
Wa(mm) |
1700 |
1700 |
| Travel speed,laden/unladen |
Km/h |
7/7.2 |
7/7.2 |
| Lift speed,laden/unladen |
m/s |
0.19/0.2 |
0.19/0.2 |
| Lowering speed,laden/unladen |
m/s |
0.5/0.4 |
0.5/0.4 |
| Service brake |
|
mechanical |
mechanical |
| Battery voltage,nominal capacity K5 |
V/Ah |
48/400 |
48/400 |
| Battery weight |
kg |
550 |
550 |
| Battery dimensions l/w/h |
mm |
983x404x630 |
983x404x630 |
| Type of drive control |
|
DC/AC |
DC/AC | |
