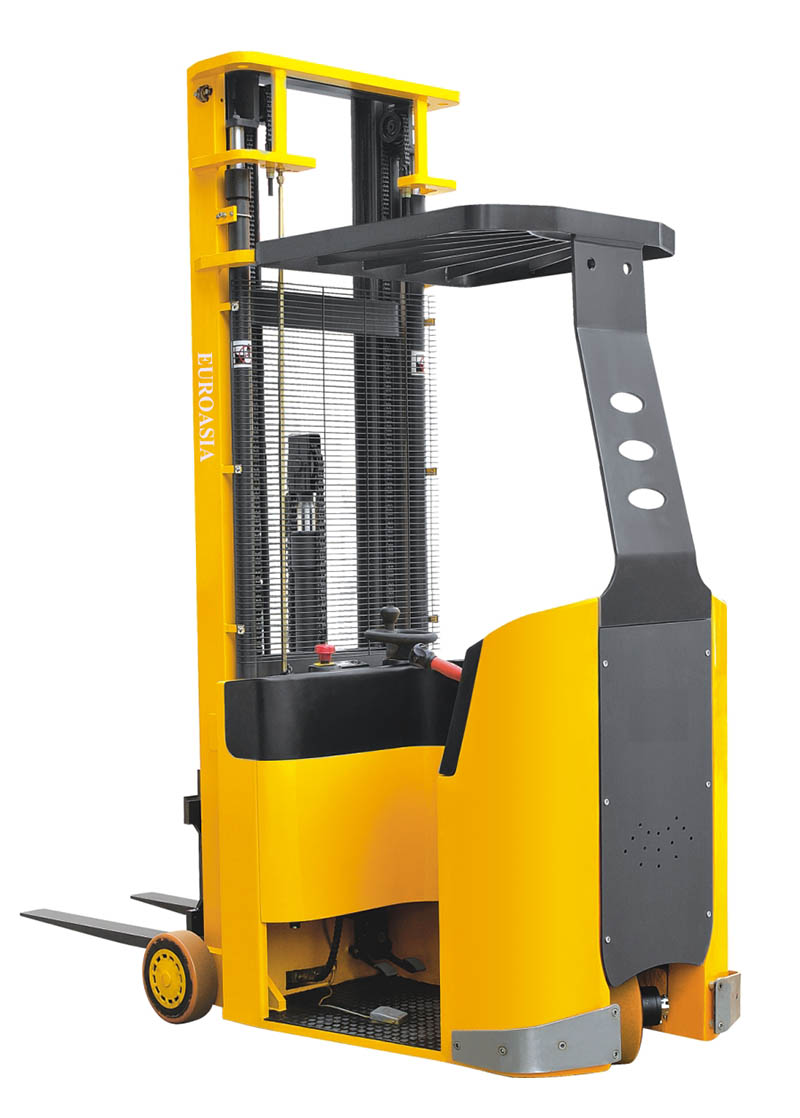

Product Description

1. Advanced AC control system with MOSFET delivers smooth driving speed control for precise.

2. Small turning radius,easy and smart to operate.

3. Lean-on compartment offer comfortable and safe driving position,reducing operator’s fatigue.

4. With regenerative braking system for driving and electronic braking system for parking.

5. Low battery Protection setting prolongs service life in reversing mode and reduce the brake pedal using and reduce operatot efforts.

6. With deadman switch on floor to cut off the power when operator leave the from cab.

7. Lifting cylinders on the both of mast provides best visibility.

8. The optional of Full Hydraulic Steering System and Electric Power Steering(EPS) offers follow advantages:

Steering wheel automatic reset.

Travelling speed automatically slow down when steering.

Show the turning angles on the display.



Model		CPD10B	CPD10A
Power		electric	electric
Operator type		standing	standing
Capacity/rated load	Q(kg)	1000	1000
Load centre distance	c(mm)	500	600
Lift height	h3(mm)	5000	3000
Wheelbase	y(mm)	1015	975
Service weight(with battery)	kg	2150	2050
Tyres type		polyurethane	polyurethane
Height,mast lowered	h1(mm)	2255	2155
Height of overhead guard(cabin)	h6(mm)	2090	2090
Seat height/stand height	h7(mm)	75	75
Height of tiller in drive position min./max.	h14(mm)	1000	1000
Overall length	l1(mm)	2250	2210
Overall width	b1(mm)	850	850
Fork dimensions	s/e/l(mm)	36/100/950	36/100/950
Fork-carriage width	b3(mm)	560	560
Turning radius	Wa(mm)	1180	1140
Internal turning radius	b13(mm)	1180	1140
Travel speed, laden/unladen	Km/h	5.8/6.0	5.8/6.0
Lift speed, laden/unladen	m/s	0.15/0.25	0.11/0.15
Lowering speed, laden/unladen	m/s	0.08/0.10	0.15/0.11
Battery voltage,nominal capacity K5	24/360	24/360
Battery weight	Kg	355	355
Battery dimensions l/w/h	mm	610x278x690	610x278x690
Type of drive control		AC	AC
