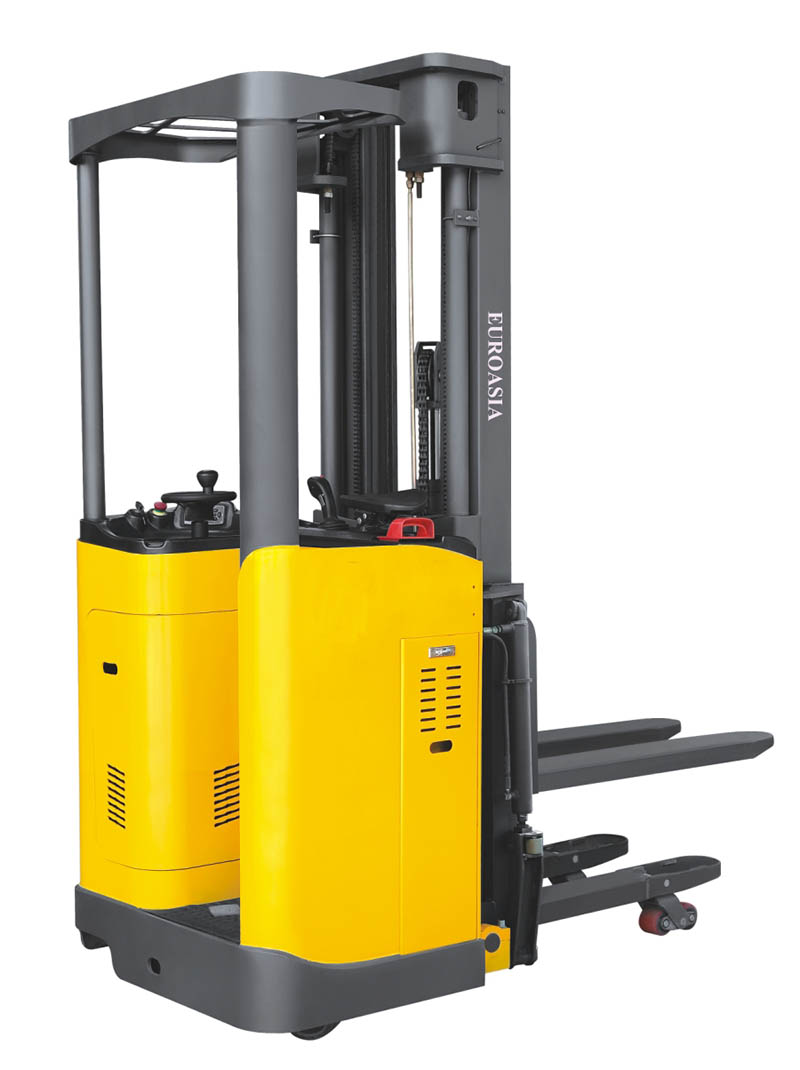

Product Description
●Advanced AC control system eliminating the motor brushes, with Intelligentized regenerative brake system.
●Adjustable driving speed. 4 levels, from 3km to 10km.
●EPS (electric power steering ) system makes steering operation easily, flexibly and more safely.
●Finger-tip control via joystick: driving speed (4 levels), lifting & lowering speed , opening/closing stabilizer.
●Stabilizers (at certain lifting height) which can work manually or automatically enhance stability and safety when stacking cargo.
●Applicable in double pallets function while forks are lifting up.
●Built-in pressure relief valve protects truck from overloading.
●Multi-function display: battery state, working hour meter, fault status, driving speed (4 levels), angel indicator of rear steering wheel, etc.
●Low placed battery offers lower center of gravity and better stability. Battery capacity up to 400Ah.
●Side battery with roll-out system is very convenient to replace batteries.
●Damping cushion for low-noise operation.
●Emergency power disconnect.
|
MODEL |
|
CDD15C |
|
Drive |
|
electric |
|
Operator type |
|
standing |
|
Load capacity/rated load |
Q(kg) |
1500 |
|
Load centre distance |
c(mm) |
600 |
|
Wheelbase |
x(mm) |
1540 |
|
Service weight (with battery) |
y(mm) |
1960 |
|
Tyres |
|
Polyurethane |
|
Height, mast lowered |
Grad |
2022/2182/2382 |
|
Free lift |
h1(mm) |
1570/1740/1940 |
|
Max. lift height |
h2(mm) |
4500/500/5600 |
|
Height, mast extended |
h4(mm) |
5020/5520/6120 |
|
Initial lift |
h6(mm) |
120 |
|
Height, lowered |
h7(mm) |
90 |
|
Overall length |
l1(mm) |
2090 |
|
Length to face of forks |
l2(mm) |
1020 |
|
Overall width |
b1(mm) |
970 |
|
Fork dimensions |
s/e/l(mm) |
60/180/1070(150) |
| Height of overhead guard(cabin) |
b3(mm) |
2255 |
|
Aisle width for pallets 1000×1200 crossways |
Ast(mm) |
2650 |
|
Aisle width for pallets 800×1200 lengthways |
Ast(mm) |
2610 |
|
Turning radius |
Wa(mm) |
1800 |
|
Travel speed, laden/unladen |
b13(mm) |
8.5/10 |
|
Lift speed, laden/unladen |
Km/h |
0-0.11/0-0.16 |
|
Lowering speed, laden/unladen |
m/s |
0-0.30/0-0.14 |
|
Service brake |
N |
Electromagnetic |
|
Battery voltage,nominal capacity K5 |
V/Ah |
24/400 |
|
Battery weight |
kg |
330 |
|
Battery dimensions l/w/h |
mm |
675x254x760 | |
