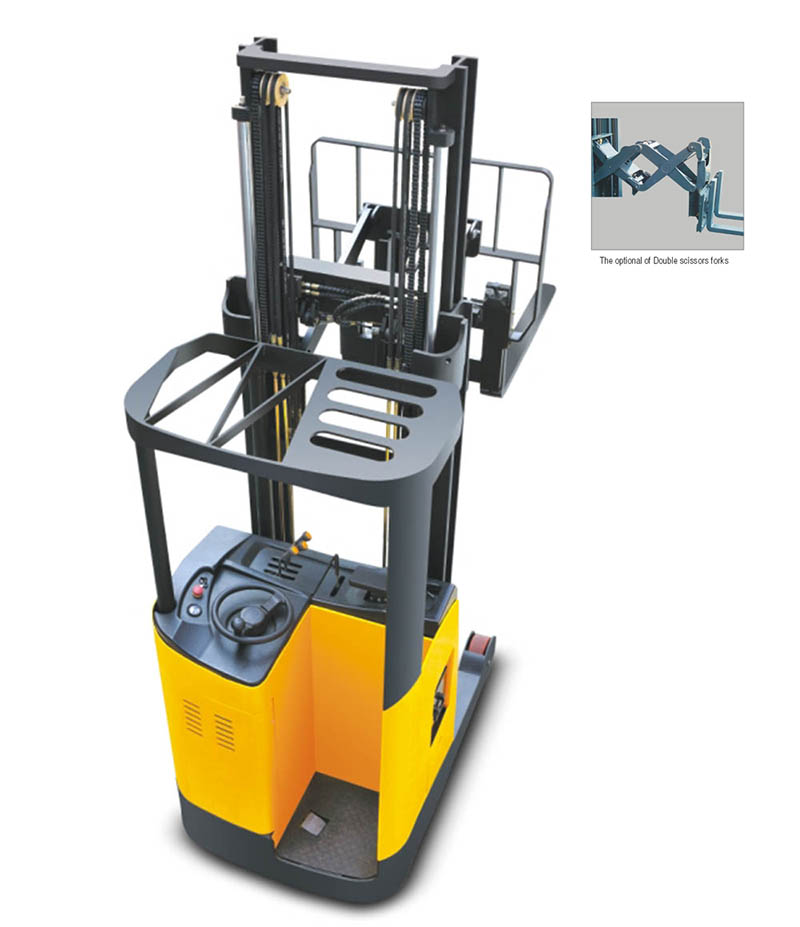

Product Description
●Advanced AC control system eliminating the motor brushes and directional contactor, which makes the minimal maintenance requirements.
●Stepless speed control Intelligentized regenerative brake system: increase overall truck performance by decreasing battery charge intervals.
●Equipped with adjustable hand-rest, adapted to different operator.
●Multi-function display: battery state, hour meter, fault indicator etc.
●Two sides-way battery with roll-out system is very convenient to replace batteries.
●Damping cushion for low-noise operation.
●Built-in pressure relief valve protects the trucks from overloads.
●Emergency power disconnect.
STRUCTURAL
●Low Center of Gravity ensures the stable operation.
●Vertical driving wheel has a small turning radius and easy to maintain. The motor structure is water-proof and dust-proof.
●The Scissor Reach Forks is operated by electric controller, which makes operation stable and no impact.
SERVICEABILITY
●Low battery protection setting prolongs the battery use time.
●CANbus technology reduces wiring complexity and increase reliability.
●All pivot points have grease fitting and serviceable bushing, reducing component wear and extending component life.
●The back cover is easy to open for maintenance and adjustment of parts of valve, oil tube and electronic parts.
|
Model |
|
CQDH15C
(Two-stage mast) |
CQDH15C
(Three-stage mast) |
|
Drive type |
|
Electric |
Electric |
|
Operation type |
|
Standing |
Standing |
|
Load capacity/rated load |
Q(kg) |
1500 |
1500 |
|
Lift height |
h3(mm) |
3000/3500/4000 |
4500/5000/5500/6000 |
|
Load centre distance |
C(mm) |
500 |
500 |
|
Load distance,centre of drive axle to fork |
X(mm) |
450 |
450 |
|
Wheelbase |
Y(MM) |
1430 |
1455 |
|
Service weight(with battery) |
kg |
2400/2400/2560 |
2700/2800/2900/2950 |
|
Tyres |
|
polyurethane |
polyurethane |
|
Tread,front |
b10(mm) |
678 |
678 |
|
Tread,rear |
b11(mm) |
1140 |
1140 |
|
Height,mast lowered |
h1(mm) |
2140/2390/2640 |
2200/2360/2520/2680 |
|
Hieght,mast extended |
h4(mm) |
4070/4570/5070 |
4070/6070/6570/6570 |
|
Overall length |
l1(mm) |
2650 |
2670 |
|
Length to face of forks |
l2(mm) |
1170 |
1170 |
|
Overall width |
b1/b2(mm) |
1300-1400/1040 |
1300-1400/1040 |
|
Fork dimensions |
s/e/l |
45×100×1070 |
45×100×1070 |
|
Reach distance |
l4(mm) |
500 |
500 |
|
Groud clearance,centre of wheel base |
m2(mm) |
65 |
65 |
|
Aisle width for pallets 1000×1200 crossways |
Ast(mm) |
2740 |
2765 |
|
Aisle width for pallets 800×1200 lengthways |
Ast(mm) |
2910 |
2935 |
|
Turning radius |
Wa(mm) |
1715 |
1735 |
|
Tracel speed,laden/unladen |
Km/h |
6.5/7 |
6.5/7 |
|
Lift speed,laden/unladen |
m/s |
0.1/0.12 |
0.1/0.12 |
|
Lowering speed,laden/unladen |
m/s |
0.15/0.12 |
0.12/0.12 |
|
Service brake |
|
Electromagnetic braking system |
|
Battery voltage,nominal capacity K5 |
V/Ah |
24/560 |
24/560 |
|
Battery weight |
kg |
450 |
450 |
|
Battery dimensions l/w/h |
mm |
770×336×610 |
770×336×610 | |
